tree data structure

Every level must be completely filled
All the leaf elements must lean towards the left.
The last leaf element might not have a right sibling i.e. a complete binary tree doesn't have to be a full binary tree.

To learn more, please visit complete binary tree.

4. Degenerate or Pathological Tree

A degenerate or pathological tree is the tree having a single child either left or right.

5. Skewed Binary Tree

A skewed binary tree is a pathological/degenerate tree in which the tree is either dominated by the left nodes or the right nodes. Thus, there are two types of skewed binary tree: left-skewed binary tree and right-skewed binary tree.

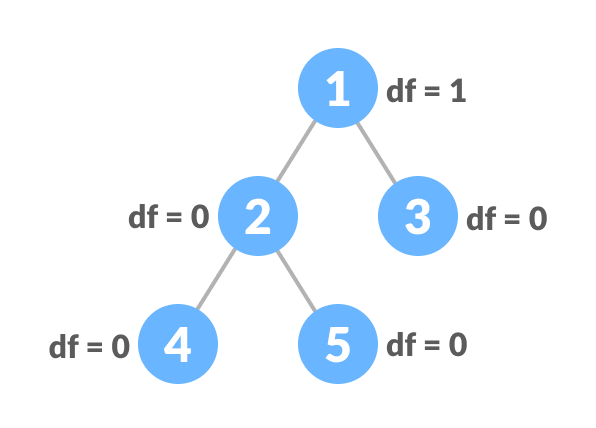

6. Balanced Binary Tree

It is a type of binary tree in which the difference between the height of the left and the right subtree for each node is either 0 or 1.

To learn more, please visit balanced binary tree.

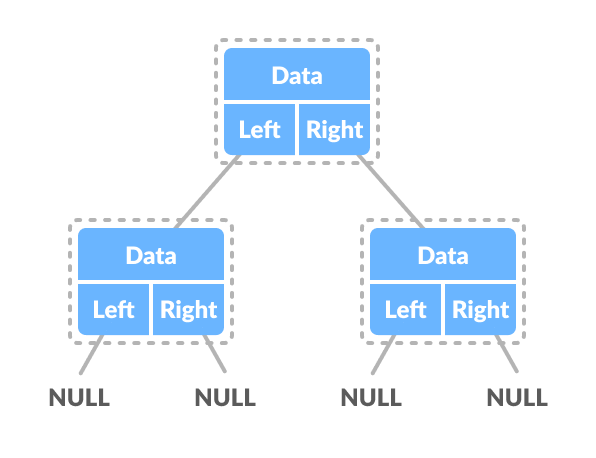

Binary Tree Representation

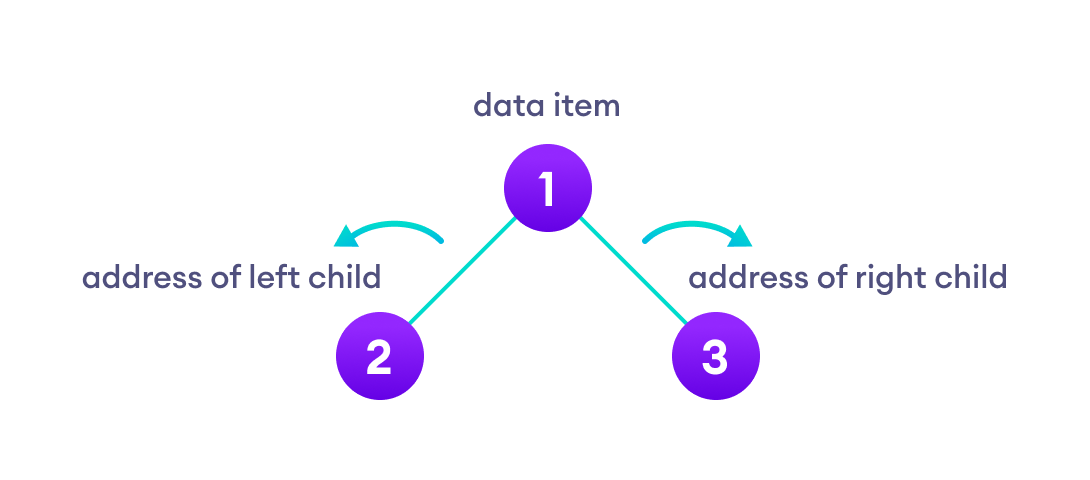

A node of a binary tree is represented by a structure containing a data part and two pointers to other structures of the same type.

struct node
{
 int data;
 struct node *left;
 struct node *right;
};

Python, Java and C/C++ Examples

Python

Java

C++

# Binary Tree in Python

class Node:
    def __init__(self, key):
        self.left = None
        self.right = None
        self.val = key

    # Traverse preorder
    def traversePreOrder(self):
        print(self.val, end=' ')
        if self.left:
            self.left.traversePreOrder()
        if self.right:
            self.right.traversePreOrder()

    # Traverse inorder
    def traverseInOrder(self):
        if self.left:
            self.left.traverseInOrder()
        print(self.val, end=' ')
        if self.right:
            self.right.traverseInOrder()

    # Traverse postorder
    def traversePostOrder(self):
        if self.left:
            self.left.traversePostOrder()
        if self.right:
            self.right.traversePostOrder()
        print(self.val, end=' ')


root = Node(1)

root.left = Node(2)
root.right = Node(3)

root.left.left = Node(4)

print("Pre order Traversal: ", end="")
root.traversePreOrder()
print("\nIn order Traversal: ", end="")
root.traverseInOrder()
print("\nPost order Traversal: ", end="")
root.traversePostOrder()

// Binary Tree in Java

// Node creation
class Node {
  int key;
  Node left, right;

  public Node(int item) {
  key = item;
  left = right = null;
  }
}

class BinaryTree {
  Node root;

  BinaryTree(int key) {
  root = new Node(key);
  }

  BinaryTree() {
  root = null;
  }

  // Traverse Inorder
  public void traverseInOrder(Node node) {
  if (node != null) {
    traverseInOrder(node.left);
    System.out.print(" " + node.key);
    traverseInOrder(node.right);
  }
  }

  // Traverse Postorder
  public void traversePostOrder(Node node) {
  if (node != null) {
    traversePostOrder(node.left);
    traversePostOrder(node.right);
    System.out.print(" " + node.key);
  }
  }

  // Traverse Preorder
  public void traversePreOrder(Node node) {
  if (node != null) {
    System.out.print(" " + node.key);
    traversePreOrder(node.left);
    traversePreOrder(node.right);
  }
  }

  public static void main(String[] args) {
  BinaryTree tree = new BinaryTree();

  tree.root = new Node(1);
  tree.root.left = new Node(2);
  tree.root.right = new Node(3);
  tree.root.left.left = new Node(4);

  System.out.print("Pre order Traversal: ");
  tree.traversePreOrder(tree.root);
  System.out.print("\nIn order Traversal: ");
  tree.traverseInOrder(tree.root);
  System.out.print("\nPost order Traversal: ");
  tree.traversePostOrder(tree.root);
  }
}

// Tree traversal in C

#include <stdio.h>
#include <stdlib.h>

struct node {
  int item;
  struct node* left;
  struct node* right;
};

// Inorder traversal
void inorderTraversal(struct node* root) {
  if (root == NULL) return;
  inorderTraversal(root->left);
  printf("%d ->", root->item);
  inorderTraversal(root->right);
}

// Preorder traversal
void preorderTraversal(struct node* root) {
  if (root == NULL) return;
  printf("%d ->", root->item);
  preorderTraversal(root->left);
  preorderTraversal(root->right);
}

// Postorder traversal
void postorderTraversal(struct node* root) {
  if (root == NULL) return;
  postorderTraversal(root->left);
  postorderTraversal(root->right);
  printf("%d ->", root->item);
}

// Create a new Node
struct node* createNode(value) {
  struct node* newNode = malloc(sizeof(struct node));
  newNode->item = value;
  newNode->left = NULL;
  newNode->right = NULL;

  return newNode;
}

// Insert on the left of the node
struct node* insertLeft(struct node* root, int value) {
  root->left = createNode(value);
  return root->left;
}

// Insert on the right of the node
struct node* insertRight(struct node* root, int value) {
  root->right = createNode(value);
  return root->right;
}

int main() {
  struct node* root = createNode(1);
  insertLeft(root, 2);
  insertRight(root, 3);
  insertLeft(root->left, 4);

  printf("Inorder traversal \n");
  inorderTraversal(root);

  printf("\nPreorder traversal \n");
  preorderTraversal(root);

  printf("\nPostorder traversal \n");
  postorderTraversal(root);
}

// Binary Tree in C++

#include <stdlib.h>

#include <iostream>

using namespace std;

struct node {
  int data;
  struct node *left;
  struct node *right;
};

// New node creation
struct node *newNode(int data) {
  struct node *node = (struct node *)malloc(sizeof(struct node));

  node->data = data;

  node->left = NULL;
  node->right = NULL;
  return (node);
}

// Traverse Preorder
void traversePreOrder(struct node *temp) {
  if (temp != NULL) {
    cout << " " << temp->data;
    traversePreOrder(temp->left);
    traversePreOrder(temp->right);
  }
}

// Traverse Inorder
void traverseInOrder(struct node *temp) {
  if (temp != NULL) {
    traverseInOrder(temp->left);
    cout << " " << temp->data;
    traverseInOrder(temp->right);
  }
}

// Traverse Postorder
void traversePostOrder(struct node *temp) {
  if (temp != NULL) {
    traversePostOrder(temp->left);
    traversePostOrder(temp->right);
    cout << " " << temp->data;
  }
}

int main() {
  struct node *root = newNode(1);
  root->left = newNode(2);
  root->right = newNode(3);
  root->left->left = newNode(4);

  cout << "preorder traversal: ";
  traversePreOrder(root);
  cout << "\nInorder traversal: ";
  traverseInOrder(root);
  cout << "\nPostorder traversal: ";
  traversePostOrder(root);
}

Binary Tree Applications

For easy and quick access to data
In router algorithms
To implement heap data structure
Syntax tree

Short description

In this tutorial, you will learn about binary tree and its different types. Also, you will find working examples of binary tree in C, C++, Java and Python.

Algorithm type

tree data structure

Tutorial TOC

Definition
Types of Binary Tree
Binary Tree Representation
Python, Java and C/C++ Examples
Binary Tree Applications

Read more about Binary Tree

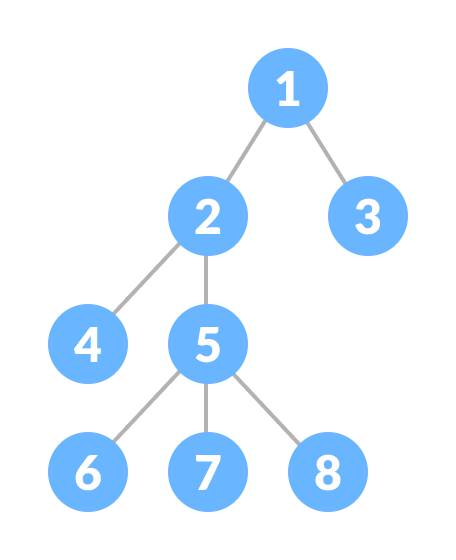

A tree is a nonlinear hierarchical data structure that consists of nodes connected by edges.

Why Tree Data Structure?

Other data structures such as arrays, linked list, stack, and queue are linear data structures that store data sequentially. In order to perform any operation in a linear data structure, the time complexity increases with the increase in the data size. But, it is not acceptable in today's computational world.

Different tree data structures allow quicker and easier access to the data as it is a non-linear data structure.

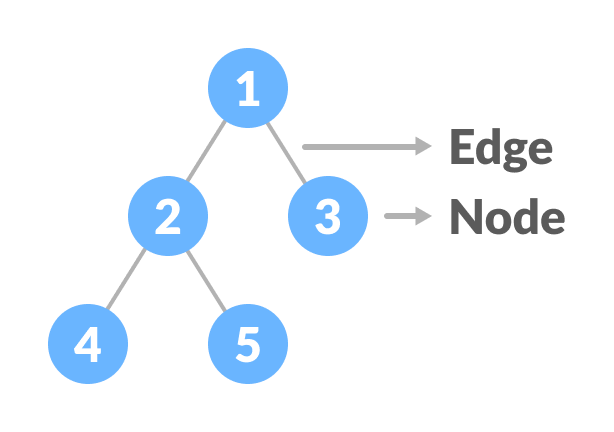

Tree Terminologies

Node

A node is an entity that contains a key or value and pointers to its child nodes.

The last nodes of each path are called leaf nodes or external nodes that do not contain a link/pointer to child nodes.

The node having at least a child node is called an internal node.

Edge

It is the link between any two nodes.

Root

It is the topmost node of a tree.

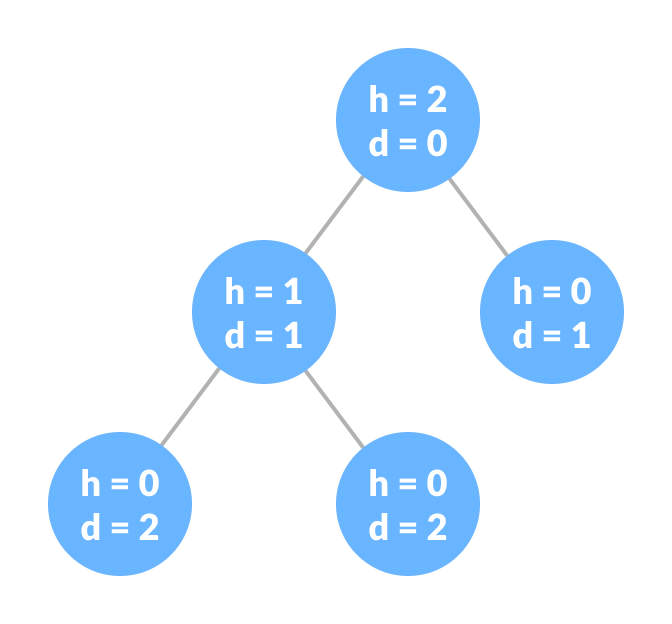

Height of a Node

The height of a node is the number of edges from the node to the deepest leaf (ie. the longest path from the node to a leaf node).

Depth of a Node

The depth of a node is the number of edges from the root to the node.

Height of a Tree

The height of a Tree is the height of the root node or the depth of the deepest node.

Degree of a Node

The degree of a node is the total number of branches of that node.

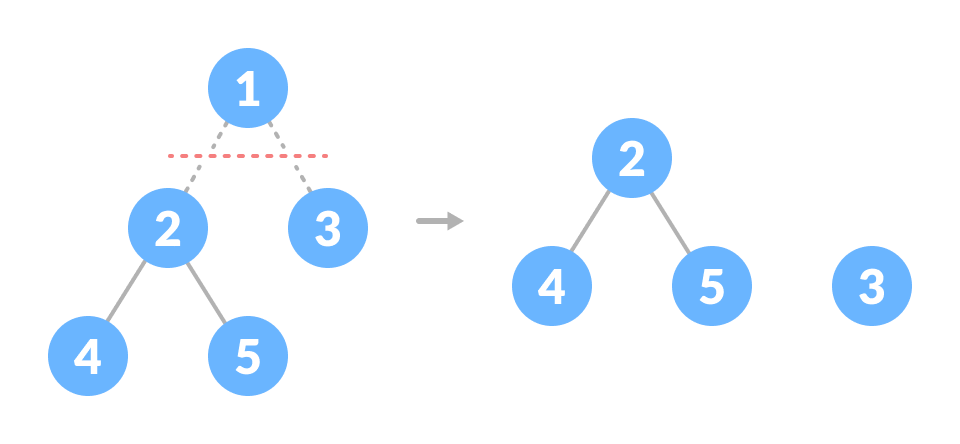

Forest

A collection of disjoint trees is called a forest.

You can create a forest by cutting the root of a tree.

Types of Tree

Tree Traversal

In order to perform any operation on a tree, you need to reach to the specific node. The tree traversal algorithm helps in visiting a required node in the tree.

To learn more, please visit tree traversal.

Tree Applications

Binary Search Trees(BSTs) are used to quickly check whether an element is present in a set or not.
Heap is a kind of tree that is used for heap sort.
A modified version of a tree called Tries is used in modern routers to store routing information.
Most popular databases use B-Trees and T-Trees, which are variants of the tree structure we learned above to store their data
Compilers use a syntax tree to validate the syntax of every program you write.
