HTML Form Elements

HTML form elements are used to store user input. There are different types of form elements such as the text box, check box, drop-down, submit button, etc. For example,

<form>
    <label for="name">Name:</label>
    <input type="text" name="name"><br><br>
    <label for="sex">Sex:</label>
    <input type="radio" name="sex" id="male" value="male">
    <label for="male">Male</label>
    <input type="radio" name="sex" id="female" value="female">
    <label for="female">Female</label> <br><br>
    <input type="submit" value="Submit">
</form>

Browser Output

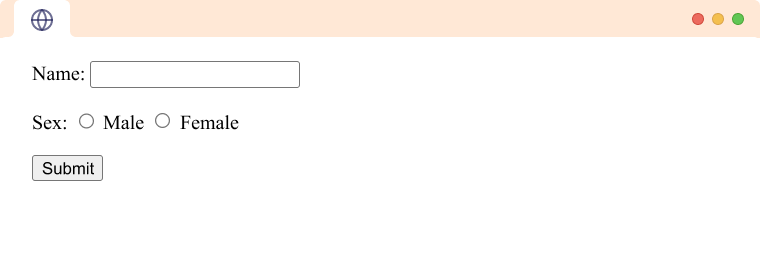

Example of a HTML Form with Form Inputs

Here, <input> and <label> are all HTML Form Elements.


HTML Form Elements

There are various HTML form elements for various input types. The form elements available in HTML5 are as follows:

  • HTML <input> tag
  • HTML <label> tag
  • HTML <button> tag
  • HTML <select>, <option> and <optgroup> tags
  • HTML <textarea> tag
  • HTML <fieldset> tag
  • HTML <legend> tag
  • HTML <datalist> tag
  • HTML <output> tag

HTML <input> tag

The HTML <input> tag defines the field where the user can enter data. For example,

<input type="text" name="firstname">

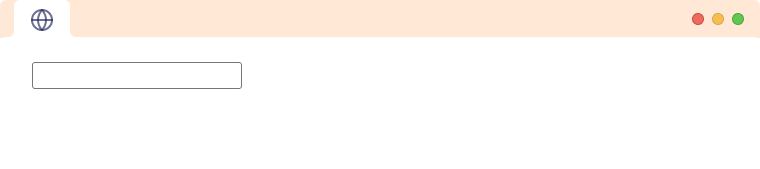

Browser Output

HTML Input tag

Here,

  • type - determines the type of input the <input> tag takes
  • name - specifies the name of the input

To learn more about the HTML input tag and its types, visit HTML Input Tag.


HTML <label> tag

The HTML label tag is used to create a caption for a form element. The text inside the <label> tag is shown to the user.

<label for="firstname">First Name</label>
<input type="text" name="firstname" id="firstname">

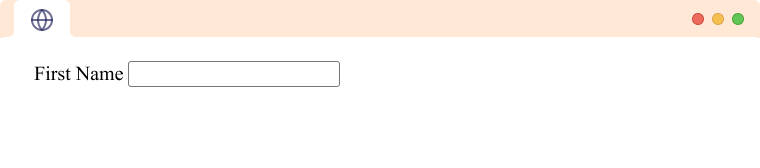

Browser Output

HTML Input tag with a label tag

The for attribute is used to associate a label with the form element. The value for the for attribute is set as the id of the form element which is firstname in the above example.

HTML Label is mainly used for accessibility as screen-readers read out the label associated with the field and it also improves user experience as clicking on the label also focuses on the input field.

This is also greatly helpful in small screens as it makes it easier to perform actions like focusing on input, selecting a checkbox, selecting a radio box, etc.


HTML <button> tag

The HTML <button> element is an interactive element that is activated by a user with a mouse, keyboard, finger, voice command, or other assistive technology.

It performs a programmable action, such as submitting a form or opening a dialog when clicked. For example,

<button type="button">Click me</button>
Browser Output
HTML button tag

The type attribute determines the action performed by clicking the button. It has 3 possible values:

  • submit

If the value of type is submit, the button click action submits the form. For example,

<form>
    <label for="name">Name:</label>
    <input type="text" name="name"><br><br>
    <button type="submit">Submit</button>
</form>

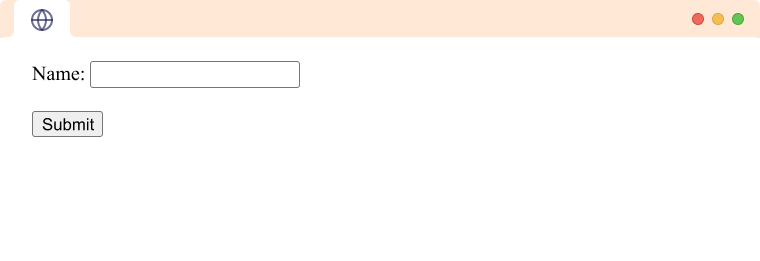

Browser Output
HTML button type submit
  • reset

If the value of type is reset, the button click action resets the value of all form elements to their initial value. For example,

<form>
    <label for="name">Name:</label>
    <input type="text" name="name"><br><br>
    <button type="reset">Reset</button>
</form>

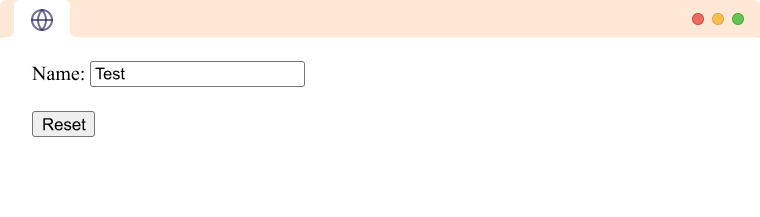

Browser Output (before reset)
HTML button type reset before

Browser Output (after reset)

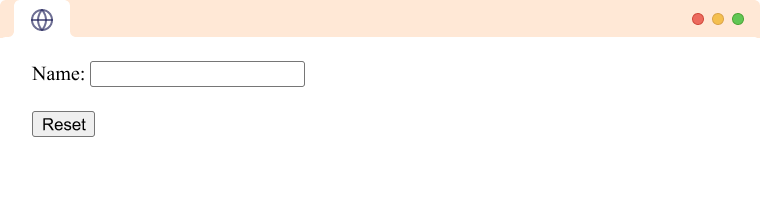

HTML button type reset
  • button

If the value of type is button, the button click action does not have a default function. Generally, javascript is used to add functionality to such buttons. For example,

<button type="button">Click me</button>

Browser Output

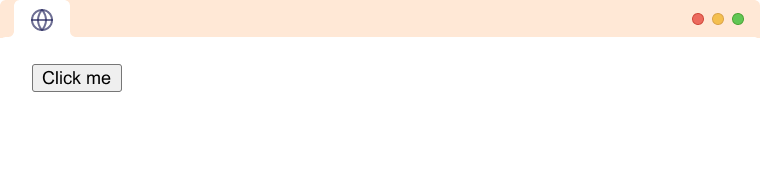

HTML button type button

HTML <select>, <option> and <optgroup> tags

The HTML <select> tag is used to create a menu of options. Each of the options is represented by the <option> tag. For example,

<label for="pets">Pets:</label>
<select id="pets">
    <option value="dog">Dog</option>
    <option value="cat">Cat</option>
</select>

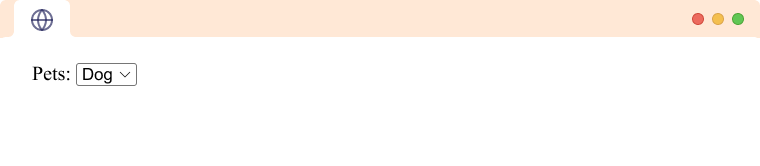

Browser Output

HTML Select tag

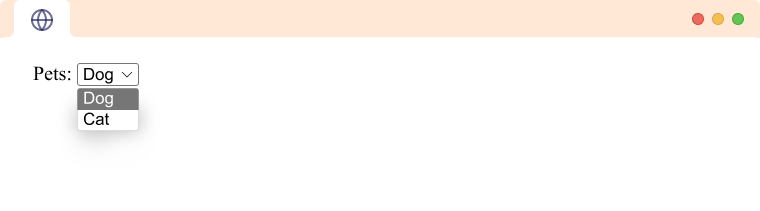

Browser Output

HTML Select tag Open

Additionally, we can also group option elements inside the <optgroup> tag to create a group of options. For example,

<label for="pets">Pets:</label>
<select id="pets">
    <optgroup label="Mammals">
        <option value="dog">Dog</option>
        <option value="cat">Cat</option>
    </optgroup>
    <optgroup label="Insects">
        <option value="spider">Spider</option>
        <option value="ants">Ants</option>
    </optgroup>
    <optgroup label="Fish">
        <option value="goldfish">Goldfish</option>
    </optgroup>
</select>

Browser Output

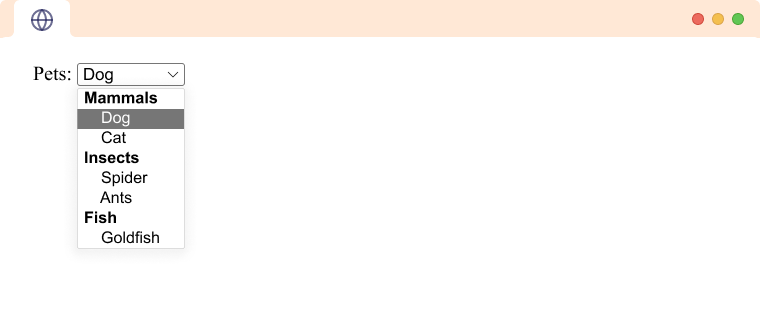

HTML Select tag with options grouped

HTML <textarea> tag

The HTML <textarea> tag is used to define a customizable multiline text input field. For example,

<textarea rows="10" cols="30"> Type something…</textarea>

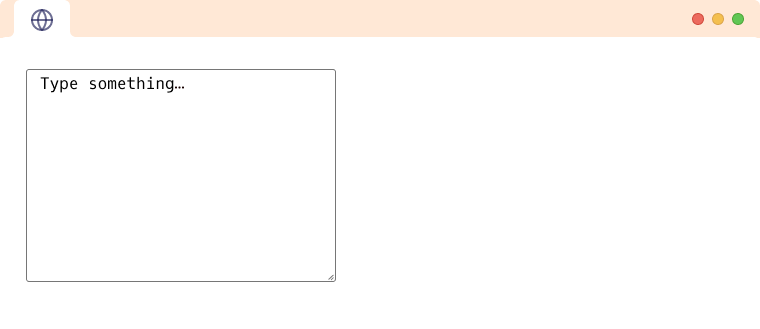

Browser Output

HTML textarea tag

Here, the rows and cols attributes represent the rows and columns of the text field.


HTML <fieldset> tag

The HTML <fieldset> tag is used to group similar form elements. It is a presentational tag and does not affect the data in the form. For example,

<form >
    <fieldset>
        <label for="firstname">First name:</label><br>
        <input type="text" id="firstname" name="fname"><br>
        <label for="lastname">Last name:</label><br>
        <input type="text" id="lastname" name="lname"><br>
    </fieldset>
</form>

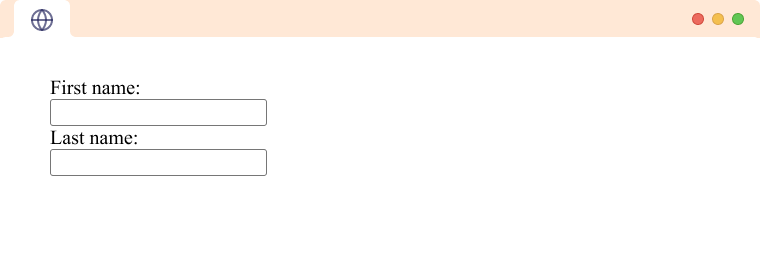

Browser Output

HTML fieldset tag

Here, the border is from the <fieldset> element.


HTML <legend> tag

The HTML <legend> tag is another presentational tag used to give a caption to a <fieldset> element. It acts similarly to an HTML <label> tag. For example,

<form>
    <fieldset>
    <legend>Name</legend>
        <label for="fname">First name:</label><br>
        <input type="text" id="fname" name="fname"><br>
        <label for="lname">Last name:</label><br>
        <input type="text" id="lname" name="lname"><br>
    </fieldset>
</form>

Browser Output

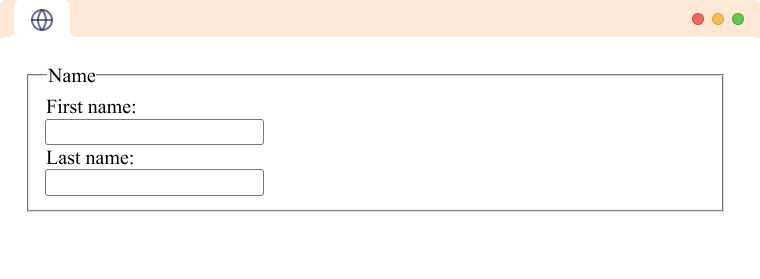

HTML legend tag

HTML <datalist> tag

The <datalist> tag defines a list of pre-defined options for an <input> element. It is used to provide autocomplete options to the form elements that show up as recommended options when the user fills in the form. For example,

<label for="country-choice">Choose a country:</label>
<input list="country-options" id="country-choice" name="country-choice">
<datalist id="country-options">
    <option value="Australia">
    <option value="Austria">
    <option value="America">
    <option value="Nepal">
</datalist>

Browser Output

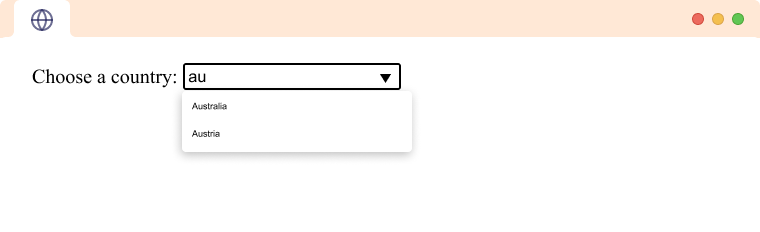

HTML Datalist tag

Here, when the user types au, the browser suggests options with the letters to the user as a recommendation.


HTML <output> tag

The HTML <output> tag is a container element that is used to store the output of a calculation usually performed using javascript. For example,

<form>
    <input type="number" id="b" name="b" value="50" /> +
    <input type="number" id="a" name="a" value="10" /> =
    <output name="result" for="a b"></output>
</form>
<script>
    const output = document.getElementsByName("result")[0]
    const inputA = document.getElementById('a')
    const inputB = document.getElementById('b')
    output.innerText = Number(inputA.value) + Number(inputB.value)
</script>

Browser Output

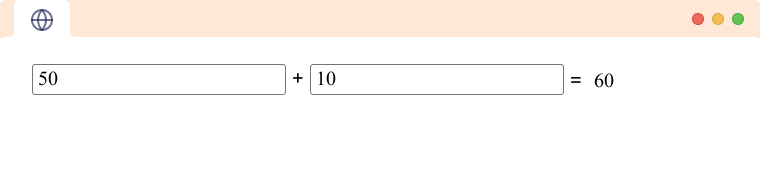

HTML Output tag

The for attribute of the <output> tag accepts a space-separated value of all the inputs used in the calculation. You can notice we have used a b inside the for. This is to denote that the output inside the <output> tag was generated using inputs a and b.

The value inside the <output> is generally generated from Javascript and filled inside the element. Here, we have calculated the sum of both inputs and inserted it inside the <output> element.
