CSS 2D Transform

CSS 2D transform property allows the rotation, translation, scale, and skew of elements in a two-dimensional plane. For example,

div {
    transform: rotate(20deg);
}

Browser Output

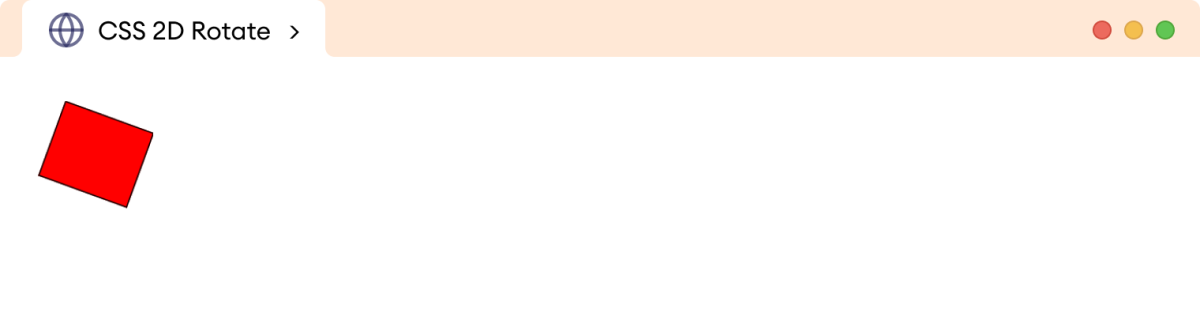

CSS 2D Transform Example

Here, the rotate() function of the transform property rotates the div element with 20 degrees in the clockwise direction.


CSS 2D Transforms Methods

The CSS 2D transform property allows us to use the following transformation methods:

  • translate(): moves an element both horizontally and vertically
  • rotate(): rotates an element in either clockwise or anticlockwise direction
  • scale(): increases or decreases the size of an element
  • skew(): distorts an element by tilting along x and/or y axes
  • matrix(): combines multiple transform methods into a single method

We will look at each of them briefly.


translate() Method

The translate() method moves an element along the x-axis and/or y-axis.

The syntax of translate() method is:

transform: translate(x-value,y-value)

Here, x-value and y-value represent the horizontal and vertical distance that the element moves from the original position.

Let's see an example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D Translate</title>
</head>

<body>
    <p>Original</p>
    <div></div>
    <p>transform: translate(60px,  20px)</p>
    <div class="translate"></div>
</body>

</html>
/* styles both divs */
div {
    width: 60px;
    height: 50px;
    background-color: red;
    border: 1px solid black;
}

/* translates the div 60px horizontally and 20px vertically */ div.translate { transform: translate(60px, 20px); }

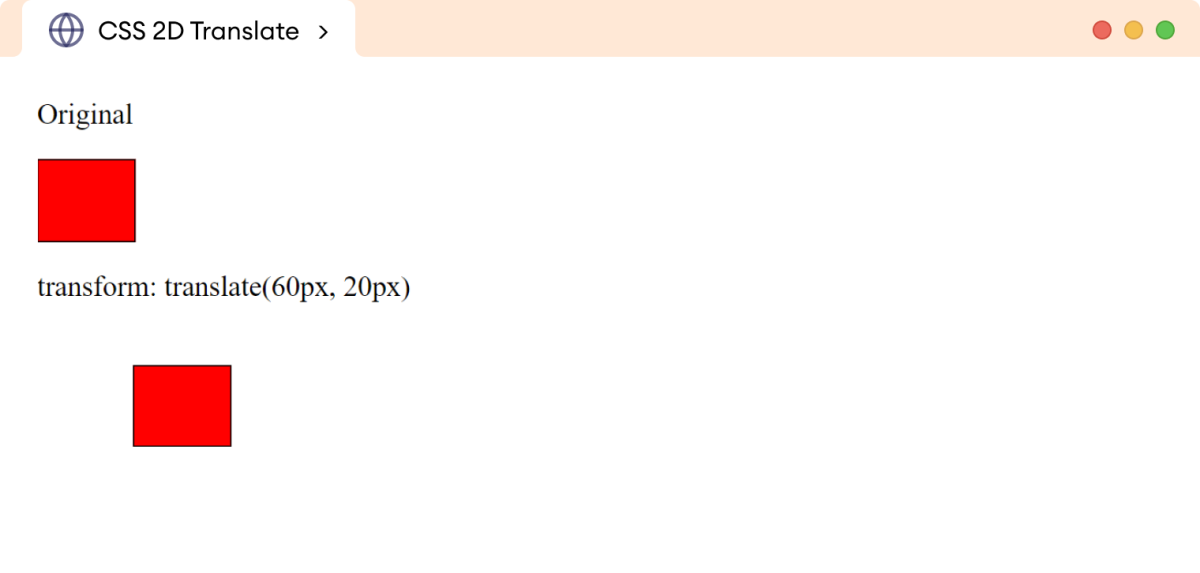

Browser Output

CSS

In the above example,

transform: translate(60px, 20px)

moves the second div element by 60 pixels horizontally and 20 pixels vertically from the initial position.

Note: The negative value moves the element in the opposite direction.


The translateX() and translateY() Methods

The translateX() Method

The translateX() method moves the element along the x-axis. For example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D TranslateX</title>
</head>

<body>
    <p>Original</p>
    <div></div>
    <p>transform: translateX(60px)</p>
    <div class="translate"></div>
</body>

</html>
/* styles both divs */
div {
    width: 60px;
    height: 50px;
    background-color: red;
    border: 1px solid black;
}

/* translates the div element 60px horizontally */ div.translate { transform: translateX(60px); }

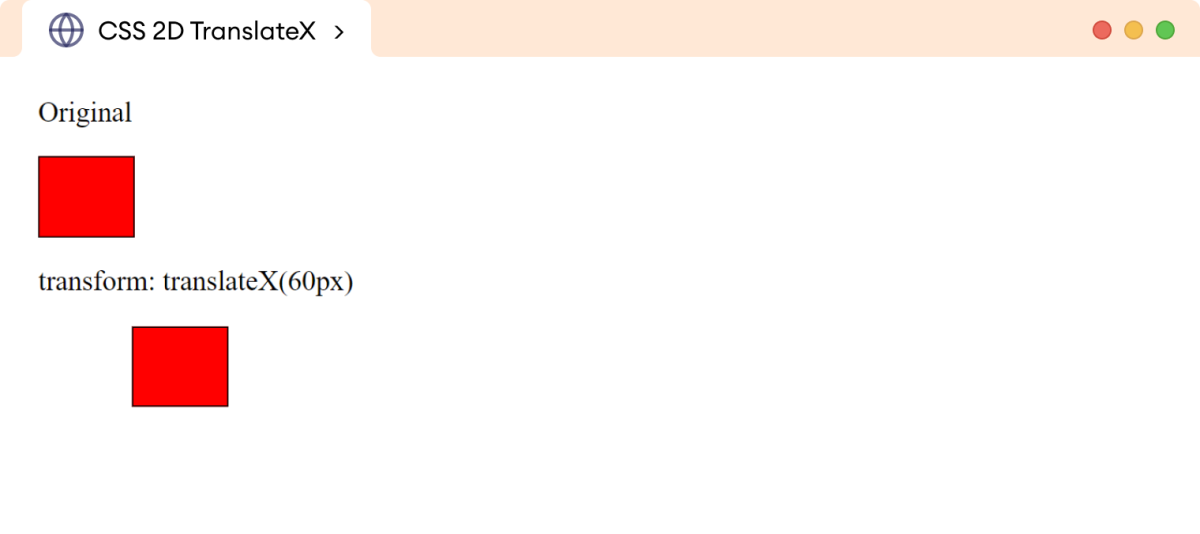

Browser Output

CSS

In the above example,

transform: translateX(60px)

moves the second div element by 60 pixels to the right horizontally from the initial position.

The translateY() Method

The translateY() method moves the element along the y-axis. For example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D TranslateY</title>
</head>

<body>
    <p>Original</p>
    <div></div>
    <p>transform: translateY(40px)</p>
    <div class="translate"></div>
</body>

</html
/* styles both divs */
div {
    width: 60px;
    height: 50px;
    background-color: red;
    border: 1px solid black;
}

/* translates the div element 40px vertically */ div.translate { transform: translateY(40px); }

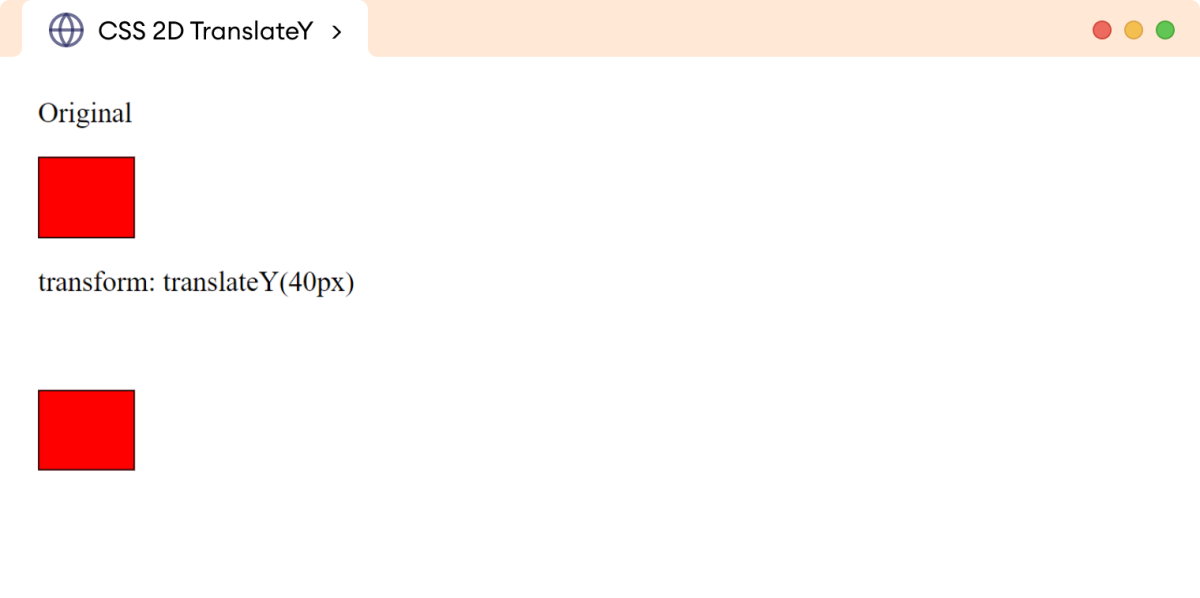

Browser Output

CSS

In the above example,

transform: translateY(40px)

moves the second div element by 40 pixels to the bottom in the vertical direction from the initial position.


rotate() Method

The rotate() method rotates an element in either a clockwise or anti-clockwise direction by a specified degree value.

The syntax of rotate() method is:

transform: rotate(degree)

The degree value should be suffixed by the deg keyword.

Let's see an example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D Rotate</title>
</head>

<body>
    <p>Original</p>
    <div></div>
    <p>transform: rotate(30deg)</p>
    <div class="rotate"></div>
</body>

</html>
/* styles both divs */
div {
    width: 60px;
    height: 50px;
    background-color: red;
    border: 1px solid black;
}

/* rotates the div element by 30 degrees */ div.rotate { transform: rotate(30deg); }

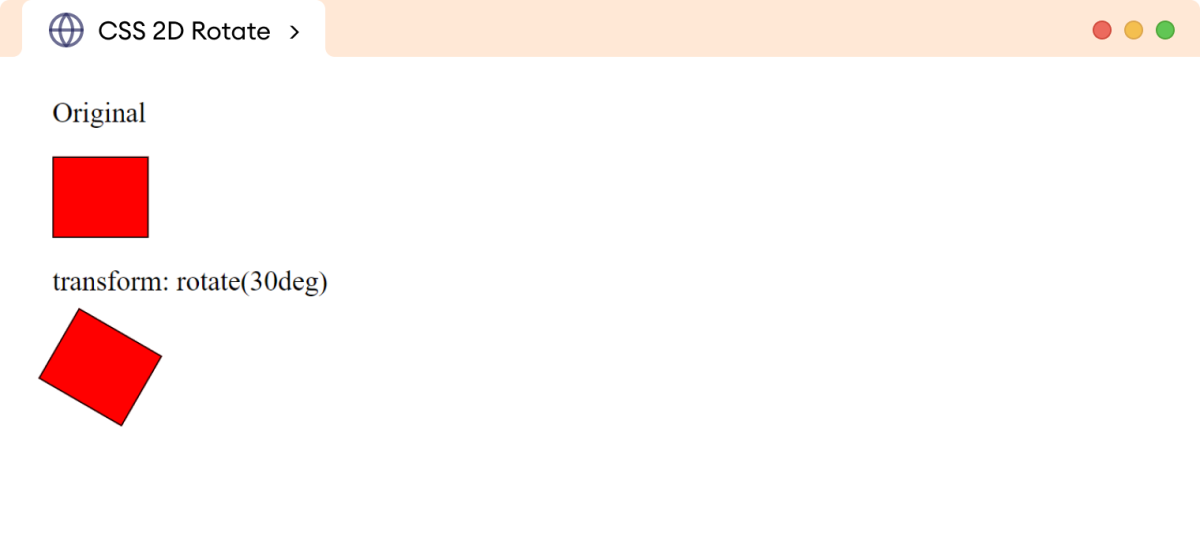

Browser Output

CSS

In the above example,

transform: rotate(30deg)

rotates the second div element by 30 degrees in the clockwise direction.

Note:The negative degree value rotates the element in the anti-clockwise direction.


The rotateX() and rotateY() Methods

The rotateX() Method

The rotateX() method rotates the element to either a clockwise or an anti-clockwise direction along the x-axis. For example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D RotateX</title>
</head>

<body>
    <p>Original</p>
    <div>Hello</div>
    <p>transform: rotateX(180deg)</p>
    <div class="rotate">Hello</div>
</body>

</html>
/* styles both divs */
div {
    width: 60px;
    height: 50px;
    background-color: red;
    border: 1px solid black;
}

/* rotates the div element by 180 degrees along x-axis */ div.rotate { transform: rotateX(180deg); }

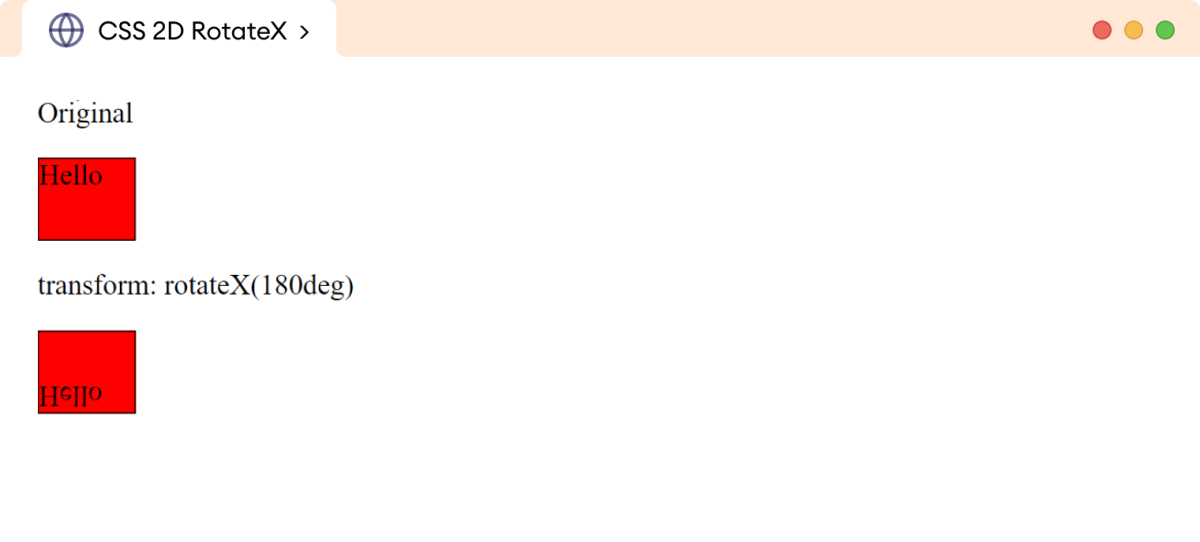

Browser Output

CSS

In the above example,

transform: rotateX(180deg)

rotates the second div element by 180 degrees in a clockwise direction along the x-axis.

The text Hello inside the first div appears upside down after rotation.

The rotateY() Method

The rotateY() method rotates the element to either a clockwise or anti-clockwise direction along the y-axis. For example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D RotateY</title>
</head>

<body>
    <p>Original</p>
    <div>Hello</div>
    <p>transform: rotateY(180deg)</p>
    <div class="rotate">Hello</div>
</body>

</html>
/* styles both divs */
div {
    width: 60px;
    height: 50px;
    background-color: red;
    border: 1px solid black;
    font-weight: bold;
    text-align: center;
}

/* rotates the div element by 180 degree along y-axis */ div.rotate { transform: rotateY(180deg); }

Browser Output

CSS

In the above example,

transform: rotateY(180deg)

rotates the second div element in a clockwise direction by 180 degrees along the y-axis.

The text Hello inside the first div appears to be mirrored after the rotation.


scale() Method

The scale() method scales the element i.e. increases or decreases the size of an element along the x and/or y-axes.

The syntax of scale() method is:

transform: scale(x-value, y-value)

Here, x-value and y-value are the scaling factors to scale the element along the x-axis and y-axis, respectively.

Let's see an example,

<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D Scale</title>
  </head>

  <body>
    <p>Original</p>
    <div></div>
    <p>transform: scale(2, 0.5)</p>
    <div class="scale"></div>
  </body>

</html>
/* styles both divs */
div {
  width: 60px;
  height: 50px;
  margin-left:50px;
  background-color: red;
  border: 1px solid black;
}

/* scales the div element to twice its size in x-axis and half its size in y-axis*/ div.scale { transform: scale(2, 0.5); }

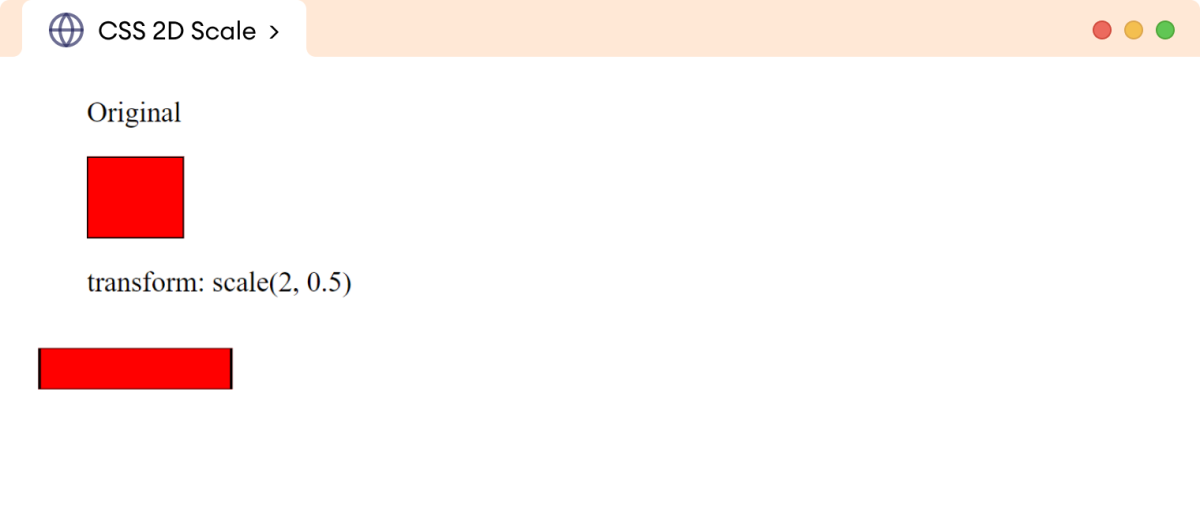

Browser Output

CSS Transform Scale Example

In the above example,

transform: scale(2, 0.5)

scales the second div element by twice the width in the x-axis and half the height in the y-axis.


The scaleX() and scaleY() Methods

The scaleX() Method

The scaleX() method scales the element only horizontally while keeping its height unchanged. For example,

<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D ScaleX</title>
  </head>

  <body>
    <p>Original</p>
    <div></div>
    <p>transform: scaleX(2)</p>
    <div class="scale"></div>
  </body>

</html>
/* styles both divs */
div {
    width: 60px;
    height: 50px;
    background-color: red;
    border: 1px solid black;
    margin-left: 50px;
}

/* scales the div element to twice its size in x-axis */ div.scale { transform: scaleX(2); }

Browser Output

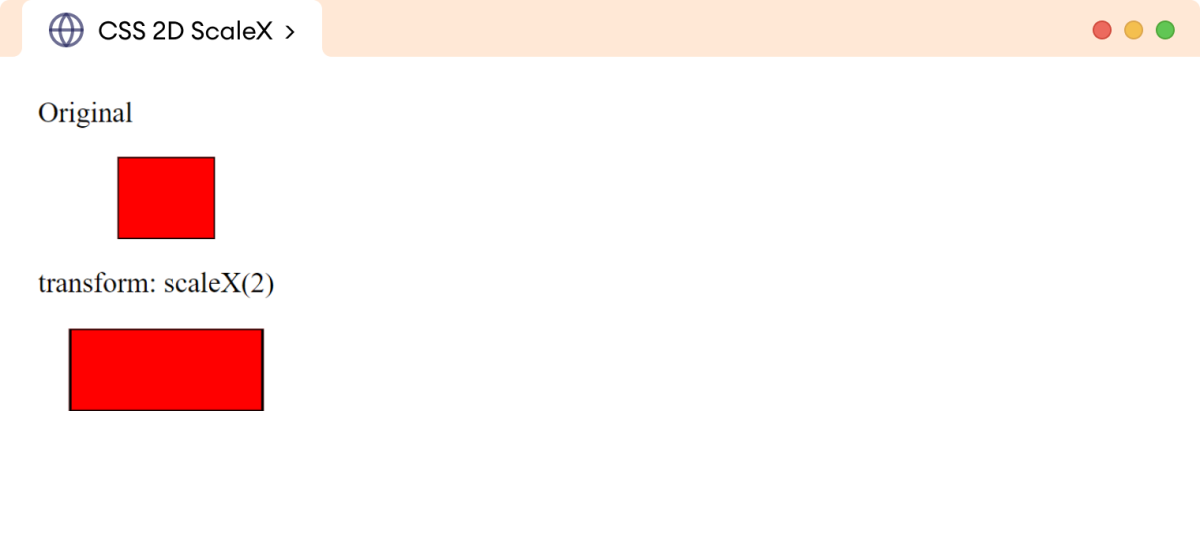

CSS Transform ScaleX Example

In the above example,

transform: scaleX(2)

scales the width of the second div element by two times the original width in the x-axis.

The scaleY() Method

The scaleY() method scales the element only vertically while keeping its width constant. For example,

<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D ScaleY</title>
  </head>

  <body>
    <p>Original</p>
    <div></div>
    <p>transform: scaleY(1.5)</p>
    <div class="scale"></div>
  </body>

</html>
/* styles both divs */
div {
  width: 60px;
  height: 50px;
  background-color: red;
  border: 1px solid black;
}

/* scales the div element to 1.5 times of its size along y-axis */ div.scale { transform: scaleY(1.5); }

Browser Output

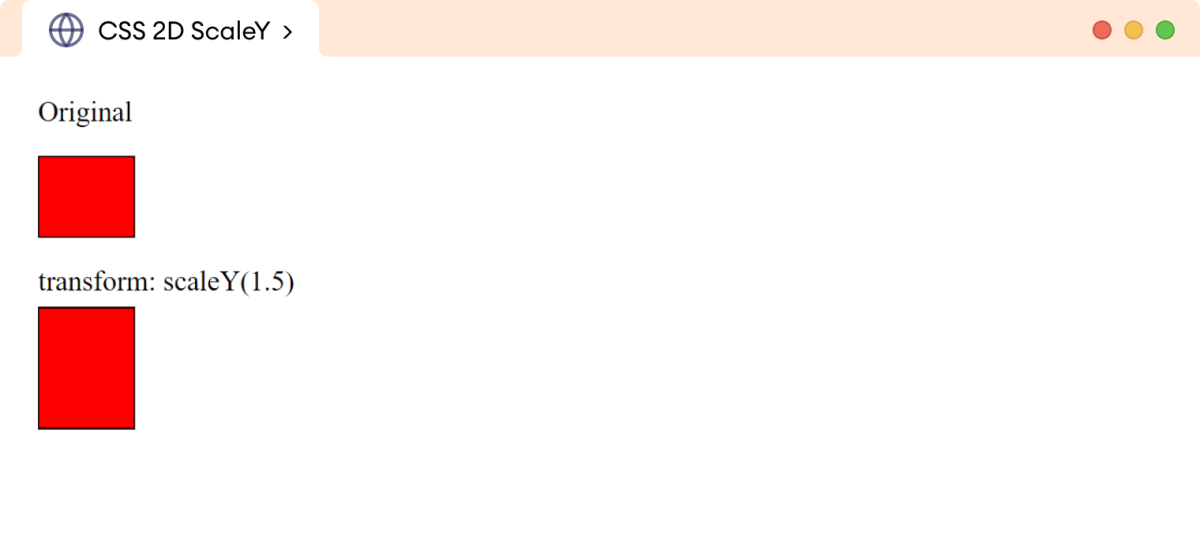

CSS Transform ScaleY Example

In the above example,

transform:scaleY(1.5)

scales the height of the element by 1.5 times of its original height in the y-axis.


skew() Method

The skew() method tilts an element along the x-axis and/or y-axis as per a given angle.

The syntax of skew() method is:

transform: skew(x-angle,y-angle)

Here, x-angle and y-angle represent the degree by which the elements will be skewed along the x-axis and y-axis, respectively.

Let's see an example,

<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D Skew</title>
  </head>

  <body>
    <p>Original</p>
    <div></div>
    <p>transform: skew(10deg,  20deg)</p>
    <div class="skew"></div>
  </body>

</html>
/* styles both divs */
div {
  width: 60px;
  height: 50px;
  background-color: red;
  border: 1px solid black;
}

/* skew the div element by 10 degrees along the x-axis and 20 degrees along y-axis */ div.skew { transform: skew(10deg, 20deg); }

Browser Output

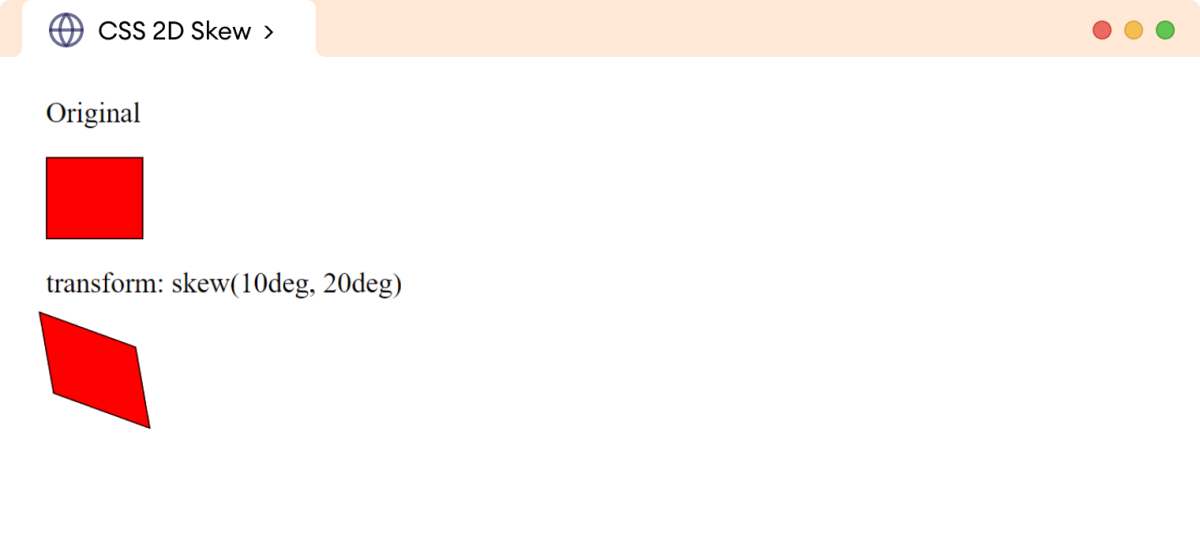

CSS Transform Skew Example

In the above example,

transform: skew(10deg, 20deg)

skews the second div element by 10 degrees along the x-axis and 20 degrees along the y-axis.

This leads the element to be slanted or skewed in both horizontal and vertical directions.

Note: The skew angles can be positive or negative, depending on the direction we want to skew the element. Positive values tilt the element in one direction, while negative values tilt it in the opposite direction.


The skewX() and skewY() Methods

The skewX() Method

The skewX() method skews an element along the x-axis as per given angle. For example,

<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D SkewX</title>
  </head>

  <body>
    <p>Original</p>
    <div></div>
    <p>transform: skewX(30deg)</p>
    <div class="skew"></div>
  </body>

</html>
/* styles both divs */
div {
  width: 60px;
  height: 50px;
  background-color: red;
  border: 1px solid black;
}

/* skews the div element by 30 degree along x-axis */ div.skew { transform: skewX(30deg); }

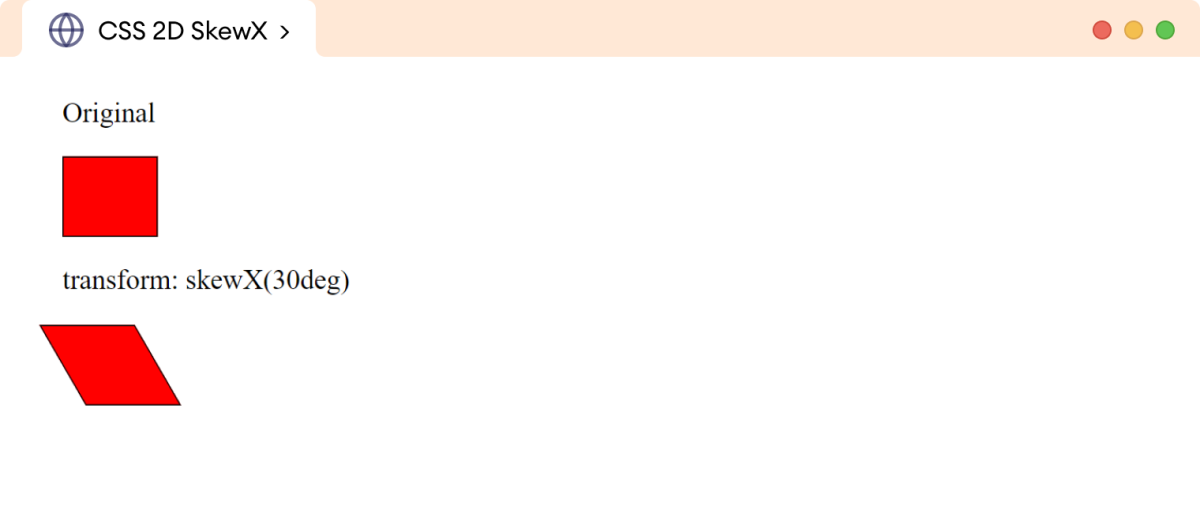

Browser Output

CSS Transform SkewX Example

In the above example,

transform: skewX(30deg))

skews the second div element by 30 degrees along the x-axis.

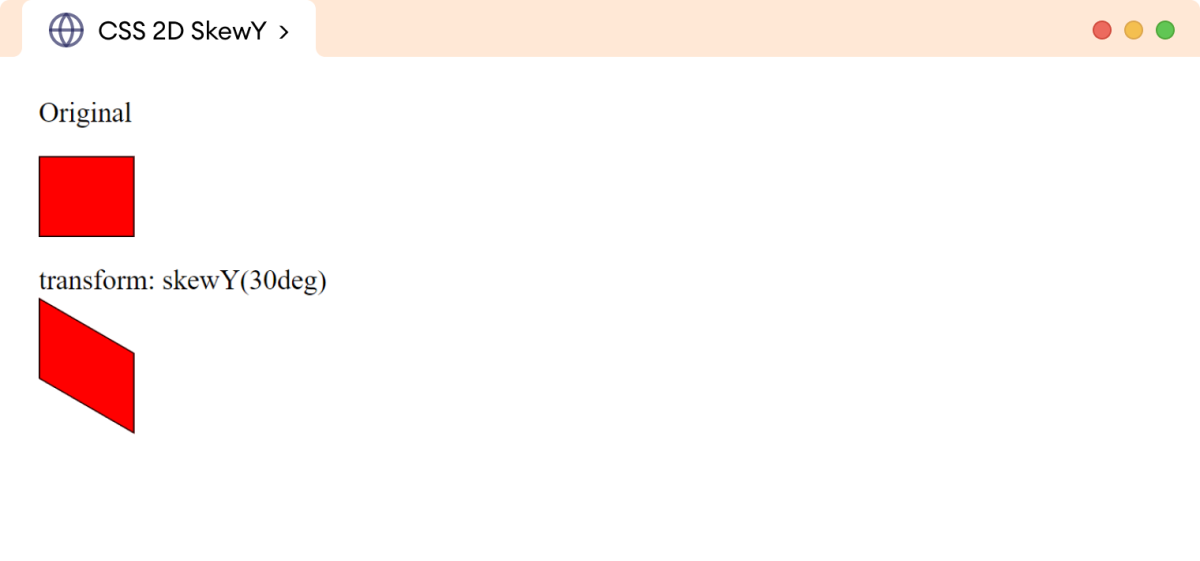

The skewY() Method

The skewY() method skews an element along the y-axis as per a given angle. For example,

<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D SkewY</title>
  </head>

  <body>
    <p>Original</p>
    <div></div>
    <p>transform: skewY(30deg)</p>
    <div class="skew"></div>
  </body>

</html>
/* styles both divs */
div {
  width: 60px;
  height: 50px;
  background-color: red;
  border: 1px solid black;
}

/* skews the div element by 30 degrees along y-axis */ div.skew { transform: skewY(30deg); }

Browser Output

CSS Transform SkewY Example

In the above example,

transform: skewY(30deg)

skews the second div element by 30 degrees along the y-axis.


matrix() Method

The matrix() method combines all the 2D transform methods into a single method.

The syntax of matrix() method is:

matrix(scaleX(), skewY(), skewX(), scaleY(), translateX(), translateY())

The matrix() method takes six parameters that allow it to rotate, scale, translate, and skew the elements.

Let's see an example,

<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 2D Matrix</title>
  </head>

  <body>
    <p>Original</p>
    <div></div>
    <p>transform: matrix(1.5, 0.5,- .0.5, 1, 50, 10)</p>
    <div class="matrix"></div>
  </body>

</html>
/* styles both divs */
div {
  width: 60px;
  height: 50px;
  background-color: red;
  border: 1px solid black;
}

/* applies matrix transformation to the div element*/ div.matrix { transform: matrix(1.5, 0.5, -0.5, 1, 50, 10); }

Browser Output

CSS Transform Matrix Example

In the above example,

transform: matrix(1.5, 0.5, -0.5, 1, 50, 10)
  • scales the div horizontally by 1.5 times of its width
  • skews the div vertically by a radian of 0.5, causing slanting effect
  • skews the div vertically by a radian of -0.5,causing slanting effect in opposite direction
  • doesn't scale the div vertically
  • translates the div horizontally by 50 pixels to the right in horizontal direction
  • translates the div by 10 pixels downward in the vertical direction

Note: The skew values in the matrix() function are specified in radians, not degrees.

Our premium learning platform, created with over a decade of experience and thousands of feedbacks.

Learn and improve your coding skills like never before.

Try Programiz PRO
  • Interactive Courses
  • Certificates
  • AI Help
  • 2000+ Challenges
