CSS Grid Items


Grid items are the direct child elements of the flex container.

In the following diagram, the purple box represents the grid container with three grid items as orange boxes.

CSS Grid Container

There are different sets of properties for placing and aligning the grid items within the grid container.


Grid Line Numbers

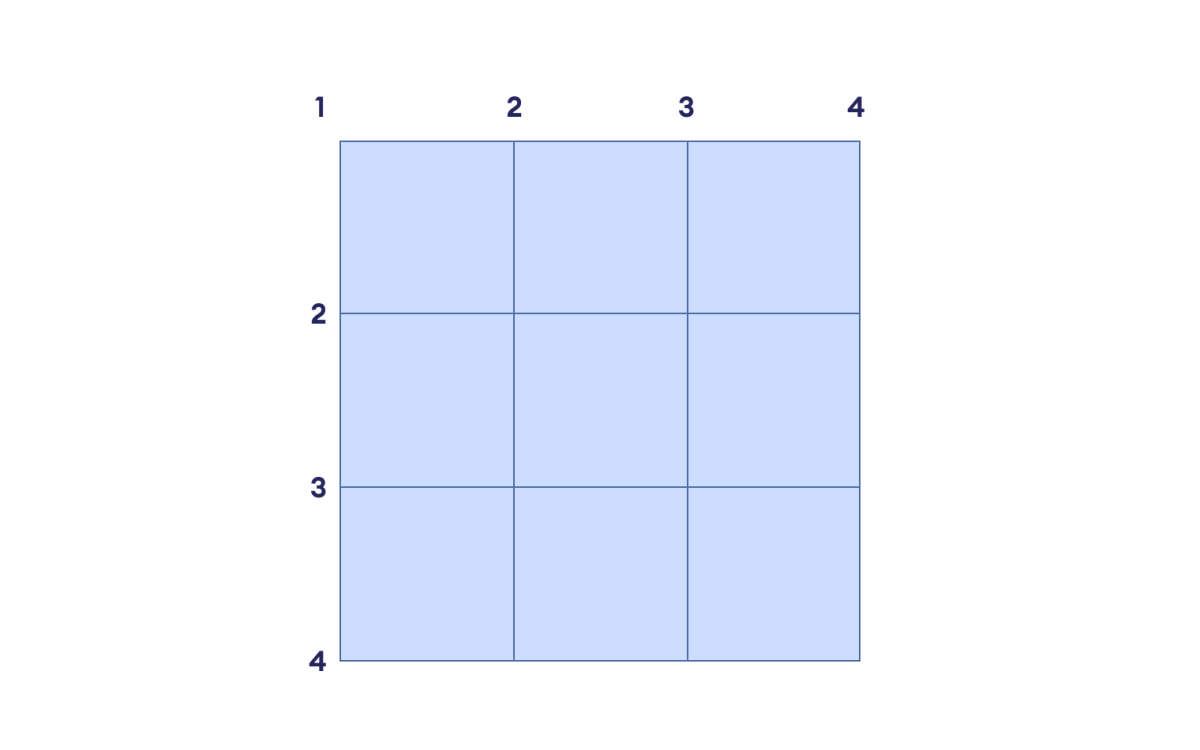

CSS grid consists of a set of horizontal and vertical lines, forming rows and columns. These lines are referred to by their line numbers.

CSS Grid Line Number

The grid items within the grid container can be placed using these line numbers.

The four adjacent grid lines form a grid cell. The grid item can be placed within one or more grid cells.

Note: The grid lines start from the top left edge of the grid container. The row line numbers increase downwards, and column line numbers increase to the right.


Placing the Grid Items With Line Numbers

The grid items can be placed with the help of grid line numbers. The following properties control the placement of grid items using grid line numbers.

  • grid-column-start: defines the starting column line number
  • grid-column-end: defines the ending column line number
  • grid-row-start: defines the starting row line number
  • grid-row-end: defines the ending row line number

These properties take the following values:

  • line-number: number to refer to a numbered grid line
  • span <number>: grid item will span across the provided number of grid tracks

Example 1: Placing Grid items

Let's place the grid items using the grid line numbers.

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 3 rows and three columns */ grid-template: 100px 100px 50px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* places the first grid item */ div.item-1 { grid-row-start: 1; grid-row-end: 3; background-color: purple; } /* places the second grid item */ div.item-2 { grid-column-start: 2; grid-column-end: 4; background-color: red; }

Browser Output

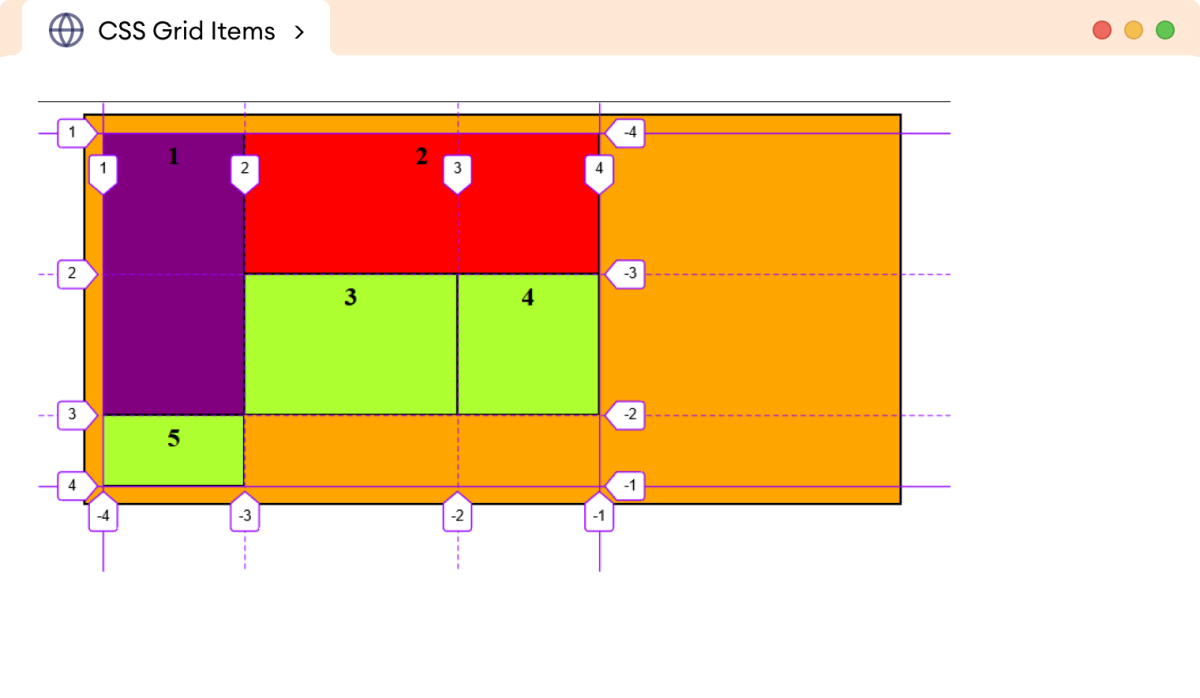

CSS Grid Template Example

Here,

div.item-1 {
    grid-row-start: 1;
    grid-row-end: 3;
    background-color: purple;
}

sets the first item (purple-colored) from row line 1 to row line 3.

Similarly,

div.item-2 {
    grid-column-start: 2;
    grid-column-end: 4;
    background-color: red;
}

sets the second item (red-colored) from column line 2 to column line 4.

Grid items automatically fill the grid cells in a sequential manner within the grid container by default.

Note: We cannot visualize the grid lines in the browser output, as they are used to position elements on the page and are not meant to be displayed. However, we can use the Grid Inspector provided by the Mozilla Browser in the console to visualize the grid lines.


CSS grid-row and grid-column Properties

The grid-row and grid-column are the shorthand properties to specify the grid line numbers.

Here,

  • grid-row: defines the grid-row-start and grid-row-end properties
  • grid-column: defines the grid-column-start and grid-column-end properties

The syntax of grid-row and grid-column properties are,

grid-row: grid-row-start / grid-row-end;
grid-column: grid-column-start / grid-column-end;

Let's look at an example.

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 3 rows and three columns */ grid-template: 100px 100px 50px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* places the first grid item */ div.item-1 {
grid-row: 1/4;
background-color: purple; } /* places the second grid item */ div.item-2 {
grid-column: 2/4;
background-color: red; }

Browser Output

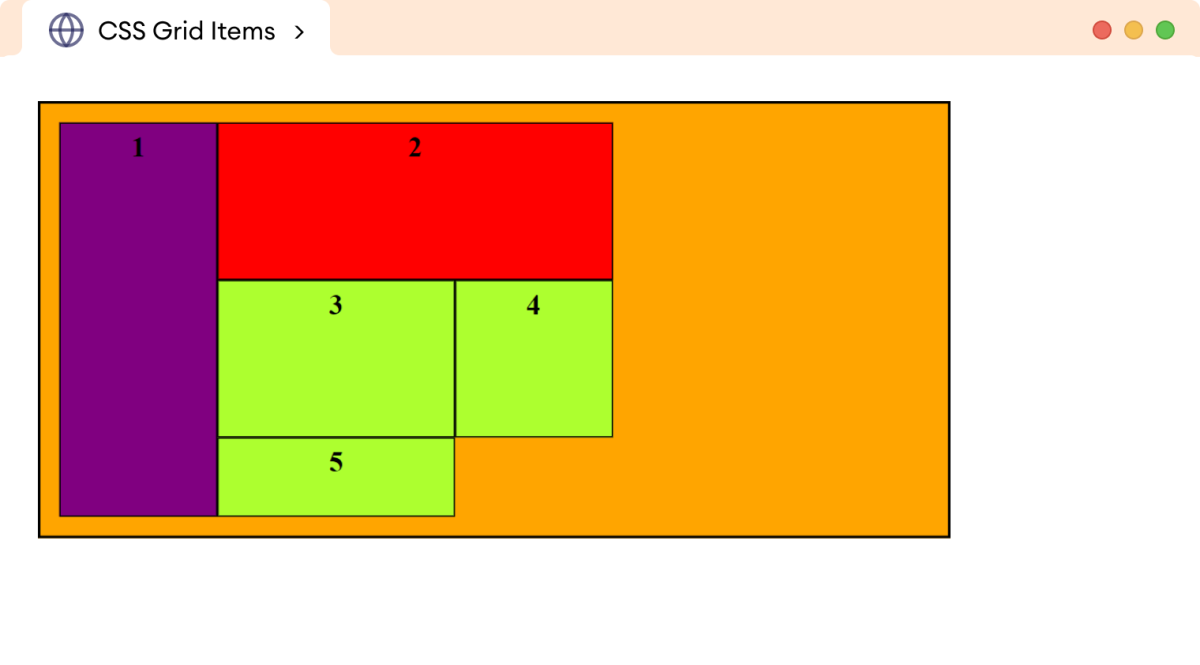

CSS Grid Row/Column Example

In the above example,

grid-row: 1/4

places the first grid item (purple boxes) from row line 1 to row line 4 within the grid container.

Similarly,

grid-column: 2/4

places the second grid item (red boxes) from column line 2 to column line 4.

Note: Grid lines can also be assigned custom names, and grid items can be positioned using these names. Line names must be defined while specifying the grid columns and rows.


Spanning the rows and columns

The span keyword is used to extend rows and columns by a specified number.

Let's look at an example.

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 3 rows and three columns */ grid-template: 100px 100px 50px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* places the first grid item */ div.item-1 {
grid-column: 1 / span 3;
background-color: purple; }

Browser Output

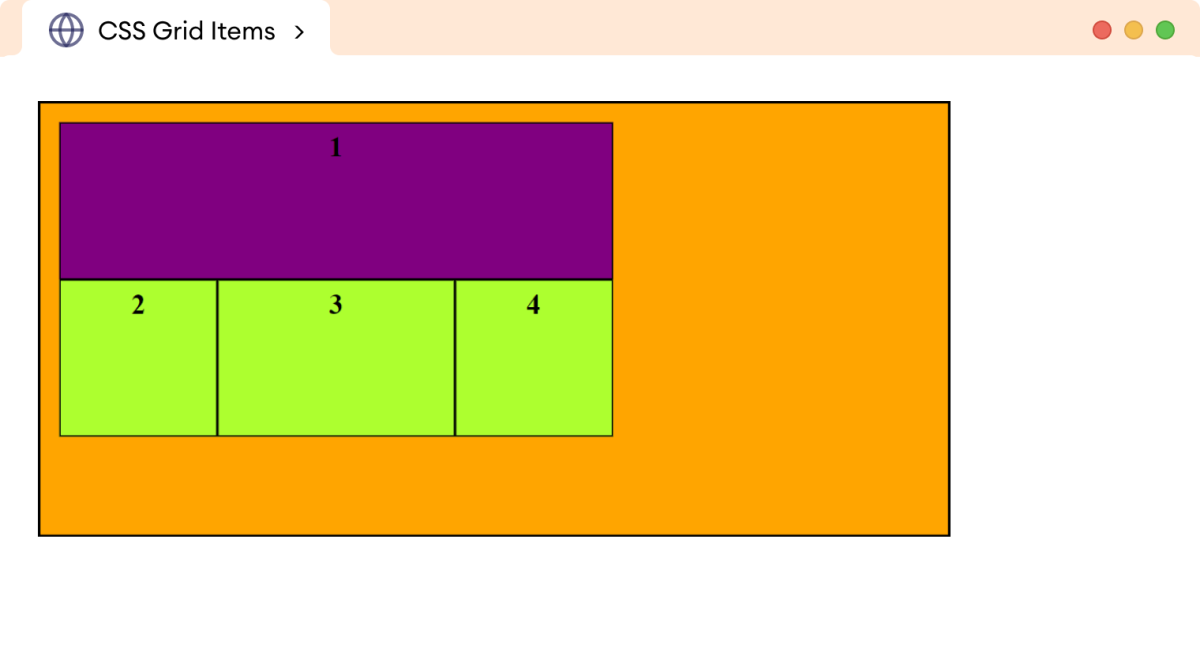

CSS Grid Span Keyword Example

In the above example,

grid-column: 1 / span 3;

extends the first grid item from column line 1 to column line 3 within the grid container.


CSS grid-area Property

The grid-area property specifies both the row and column positions of a grid item in a single declaration.

The syntax for the grid-area property is as follows,

grid-area: row-start / column-start / row-end / column-end | item-name;

Let's look at an example.

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 3 rows and three columns */ grid-template: 100px 100px 50px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* places the first grid item */ div.item-1 {
grid-area: 1 / 1 / 3/ 3;
background-color: purple; }

Browser Output

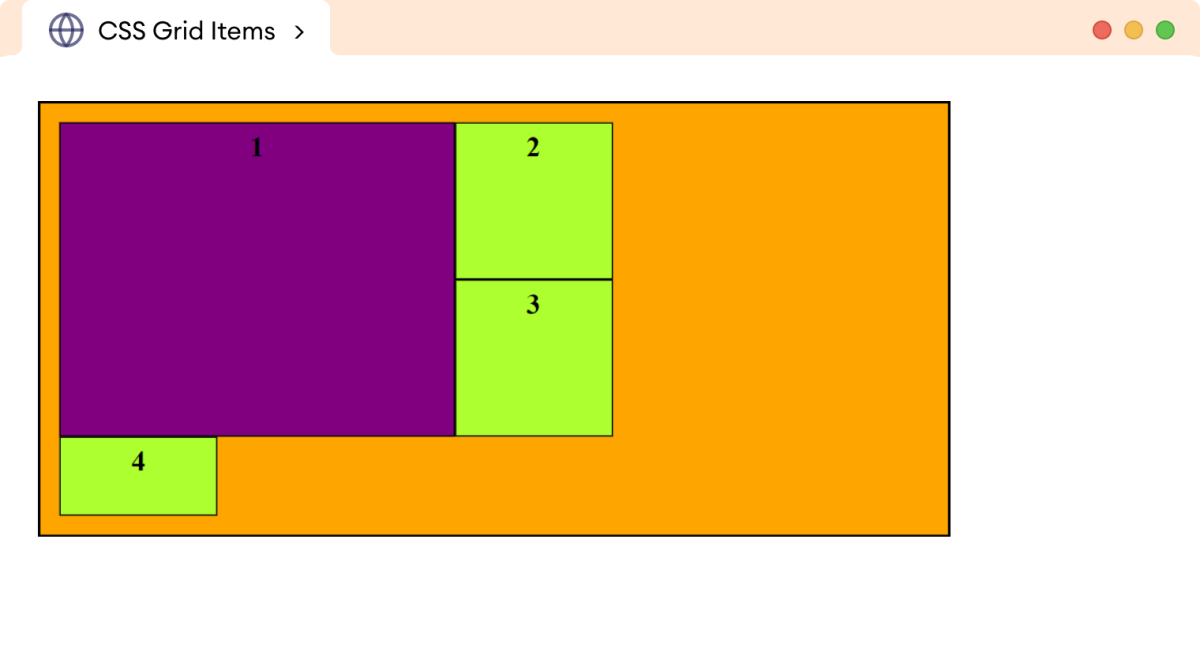

CSS Grid-Area Example

In the above example,

grid-area: 1 / 1 / 3 / 3

is equivalent to

grid-row-start: 1;
grid-column-start: 1;
grid-row-end: 3;
grid-column-end: 3;

Note: The grid-area property can be specified with an area name, which corresponds to the named grid areas defined by the grid-template-areas property.


CSS justify-self Property

The justify-self property is used to control the horizontal alignment of a grid item within its grid cell.

The possible values of the justify-self property are start, end, center, and stretch.

Let's look at an example.

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 2 rows and three columns */ grid-template: 100px 100px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* aligns the content to the end of grid cell */ div.item-1 {
justify-self: end;
background-color: purple; }

Browser Output

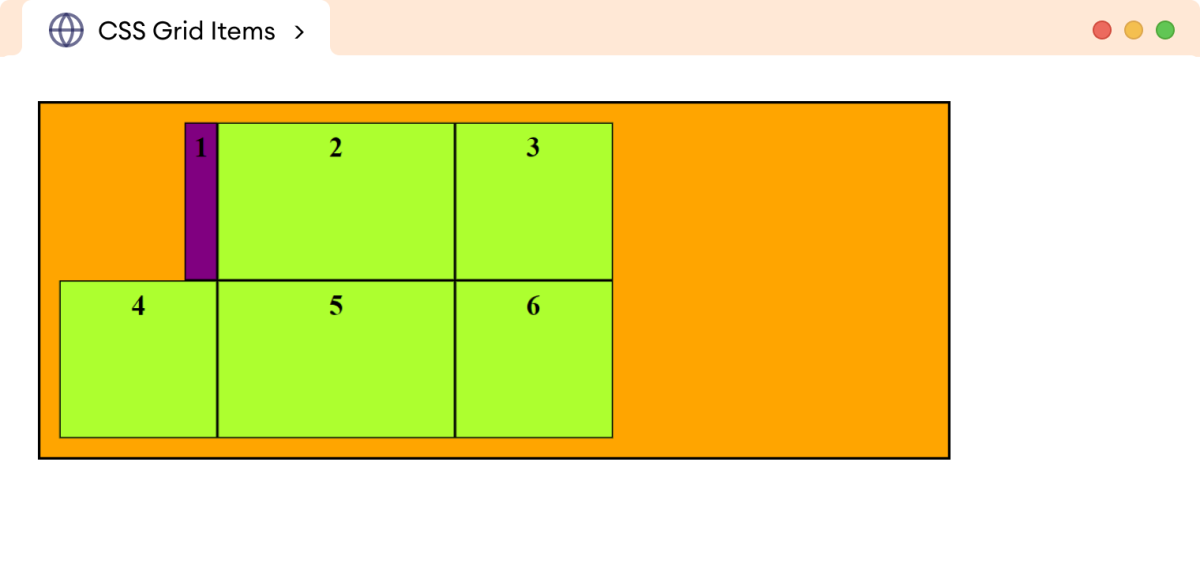

CSS Justify Self End Example

In the above example, justify-self: end aligns the grid content of the first item to the end of the grid cell.

Values of justify-self

justify-self: start

The start value of the justify-self property aligns the grid content to the start of the grid cell. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

    /* defines the grid of 2 rows and three columns */
    grid-template: 100px 100px / 100px 150px 100px;

    width: 550px;
    border: 2px solid black;
    background-color: orange;
    padding: 12px;
}

/* styles all grid items */
div.item {
    border: 1px solid black;
    background-color: greenyellow;
    text-align: center;
    padding: 5px;
    font-weight: bold;
}

/* aligns the content to the start of grid cell */
div.item-1 {
justify-self: start;
background-color: purple; }

Browser Output

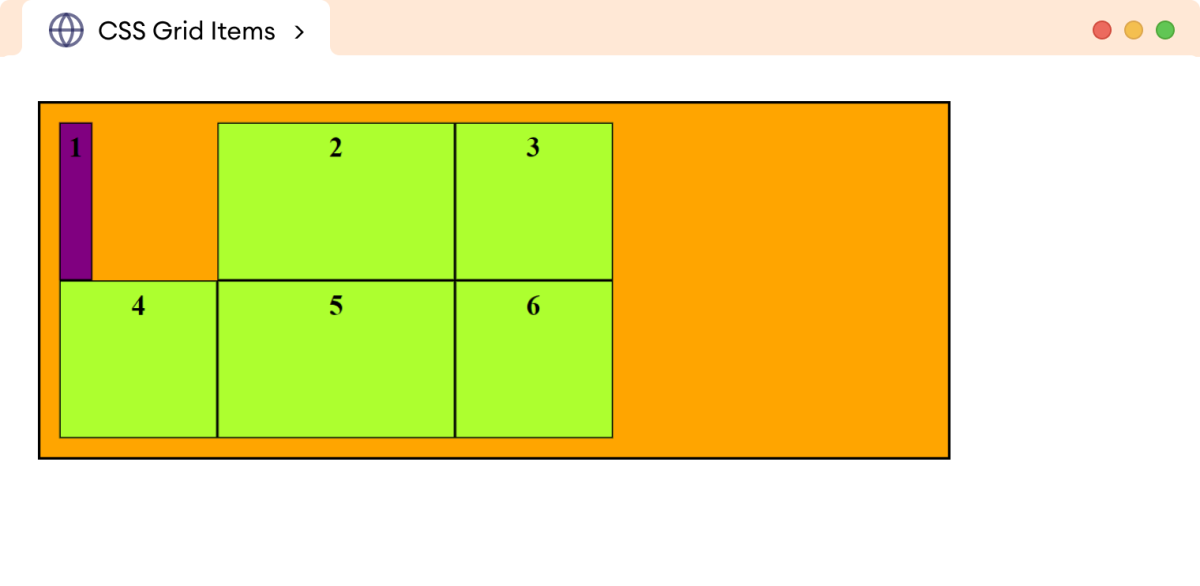

CSS Justify-Self Start Example
justify-self: center

The center value of the justify-self property aligns the grid content to the center of the grid cell. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 2 rows and three columns */ grid-template: 100px 100px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* aligns the content to the center of grid cell */ div.item-1 {
justify-self: center;
background-color: purple; }

Browser Output

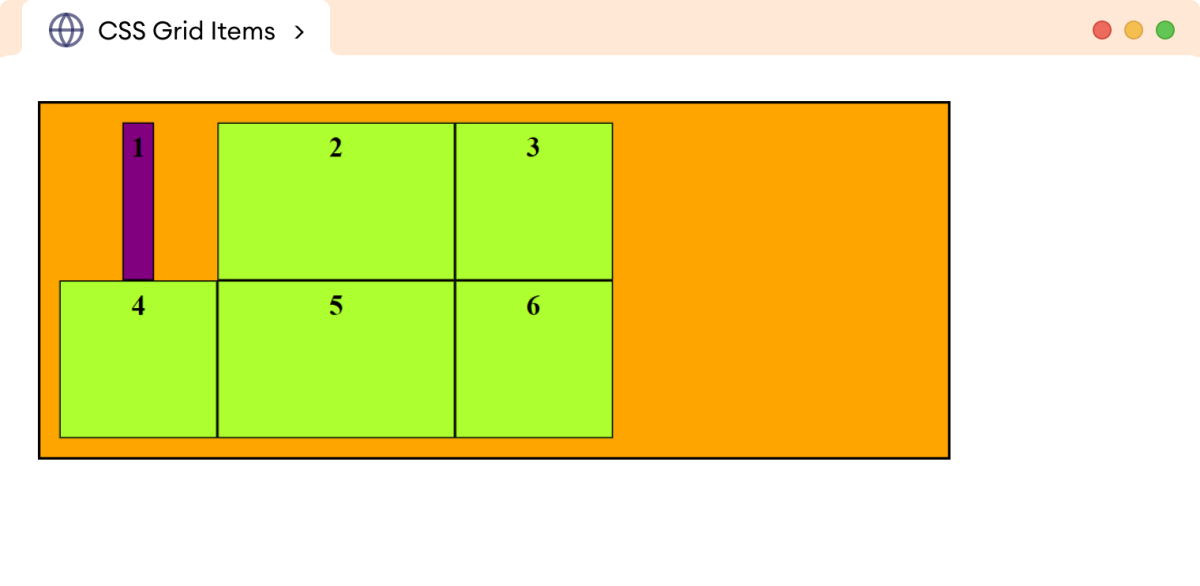

CSS Justify-Self Center Example
justify-self: stretch

The stretch value of the justify-self stretches the content to fill the grid cell. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 2 rows and three columns */ grid-template: 100px 100px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* stretches the content to fill the grid cell */ div.item-1 {
justify-self: stretch;
background-color: purple; }

Browser Output

CSS Justify-Self Stretch Example

CSS align-self Property

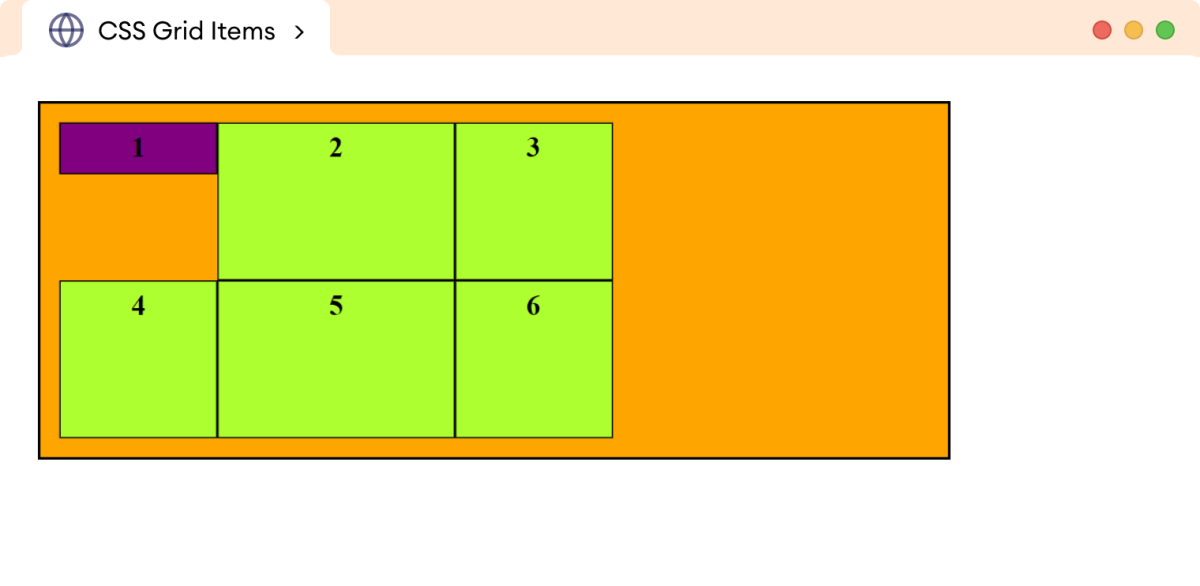

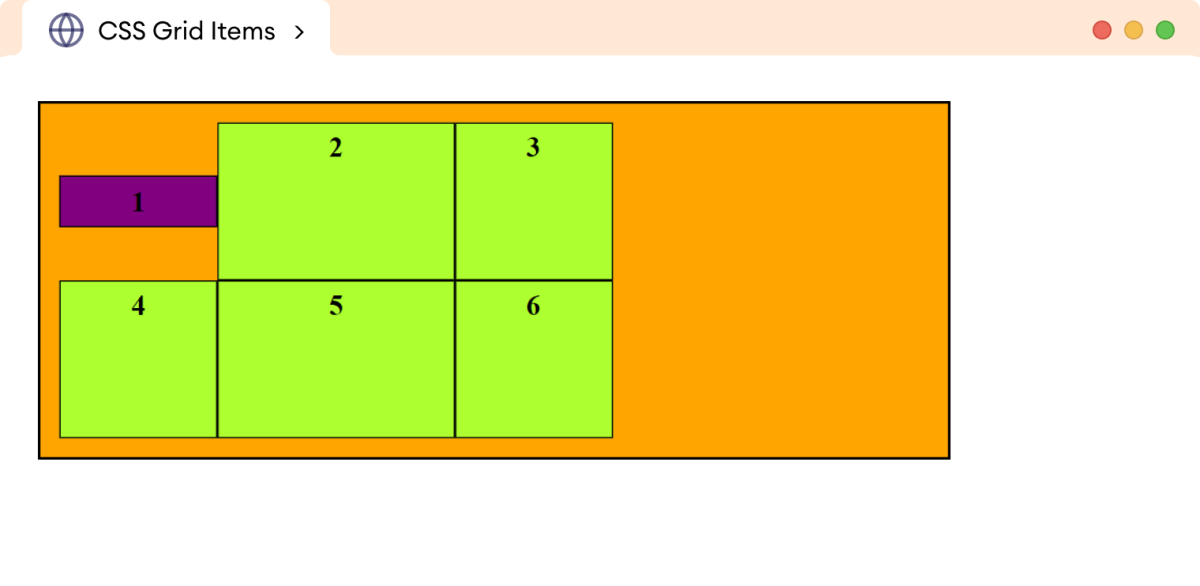

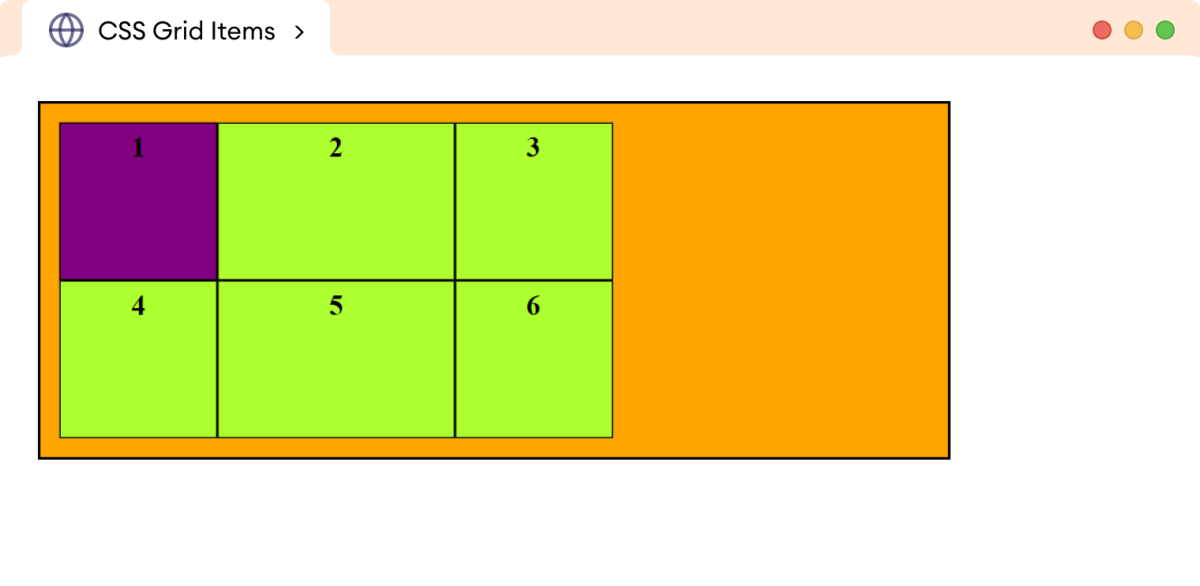

The align-self property is used to control the vertical alignment of a grid item within its grid cell.

The possible values of the align-self property are start, end, center, and stretch.

Let's look at an example.

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

    /* defines the grid of 2 rows and three columns */
    grid-template: 100px 100px / 100px 150px 100px;

    width: 550px;
    border: 2px solid black;
    background-color: orange;
    padding: 12px;
}

/* styles all grid items */
div.item {
    border: 1px solid black;
    background-color: greenyellow;
    text-align: center;
    padding: 5px;
    font-weight: bold;
}

/* aligns the content to the end of grid cell */
div.item-1 {
    align-self: end;
    background-color: purple;
}

Browser Output

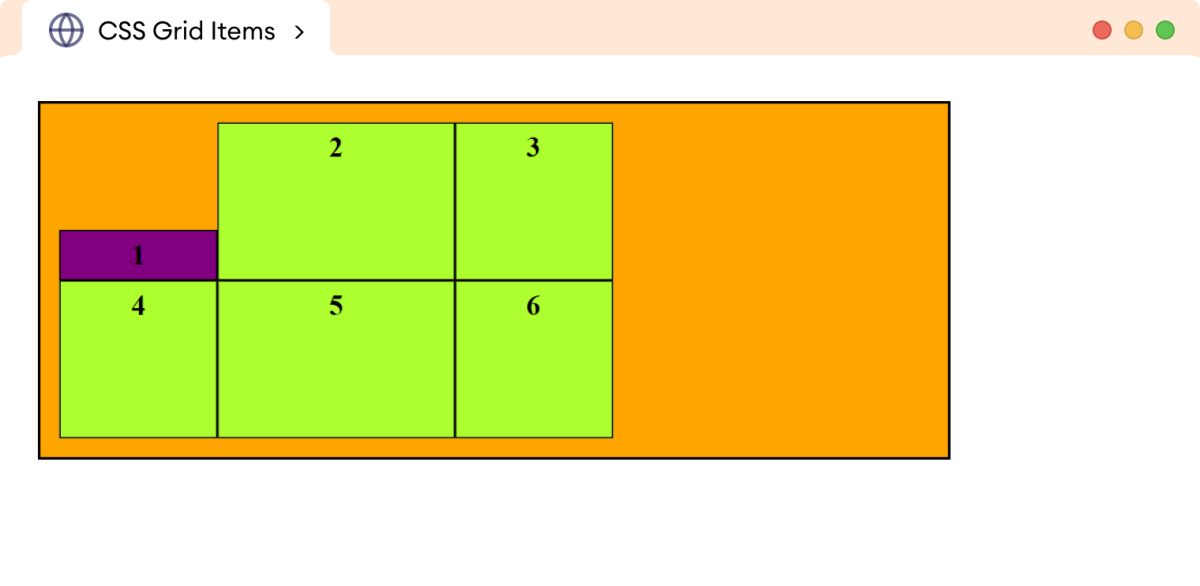

CSS Align-Self End Example

In the above example, align-self: end aligns the grid content of the first item to the end of the grid cell.

Values of align-self

align-self: start

The start value of the align-self property aligns the grid content to the start of the grid cell. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 2 rows and three columns */ grid-template: 100px 100px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* aligns the content to the start of grid cell */ div.item-1 {
align-self: start;
background-color: purple; }

Browser Output

CSS Align-Self Start Example
align-self: center

The center value of the align-self property aligns the grid content to the center of the grid cell. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

    /* defines the grid of 2 rows and three columns */
    grid-template: 100px 100px / 100px 150px 100px;

    width: 550px;
    border: 2px solid black;
    background-color: orange;
    padding: 12px;
}

/* styles all grid items */
div.item {
    border: 1px solid black;
    background-color: greenyellow;
    text-align: center;
    padding: 5px;
    font-weight: bold;
}

/* aligns the content to the center of grid cell */
div.item-1 {
    align-self: center;
    background-color: purple;
}

Browser Output

CSS Align-Self Center Example
align-self: stretch

The stretch value of the align-self stretches the content to fill the grid cell. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

    /* defines the grid of 2 rows and three columns */
    grid-template: 100px 100px / 100px 150px 100px;

    width: 550px;
    border: 2px solid black;
    background-color: orange;
    padding: 12px;
}

/* styles all grid items */
div.item {
    border: 1px solid black;
    background-color: greenyellow;
    text-align: center;
    padding: 5px;
    font-weight: bold;
}

/* stretches the content to fill the grid cell */
div.item-1 {
    align-self: stretch;
    background-color: purple;
}

Browser Output

CSS Align-Self Stretch Example

CSS place-self Property

The place-self property is a shorthand property to specify the justify-self and align-self property in a single declaration.

The syntax of the place-self property is as follows:

place-self: align-self place-self;

Here, the first value sets align-self, and the second value sets the justify-self property. If the second value is omitted, the first value is assigned to both properties.

Let's look at an example.

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS Grid Items</title>
    </head>

    <body>
        <div class="container">
            <div class="item item-1">1</div>
            <div class="item item-2">2</div>
            <div class="item item-3">3</div>
            <div class="item item-4">4</div>
            <div class="item item-5">5</div>
            <div class="item item-6">6</div>
        </div>
    </body>

</html>
div.container {
    /* sets the element as a grid container */
    display: grid;

/* defines the grid of 2 rows and three columns */ grid-template: 100px 100px / 100px 150px 100px;
width: 550px; border: 2px solid black; background-color: orange; padding: 12px; } /* styles all grid items */ div.item { border: 1px solid black; background-color: greenyellow; text-align: center; padding: 5px; font-weight: bold; } /* aligns the content to the end of grid cell */ div.item-1 {
place-self: center center;
background-color: purple; }

Browser Output

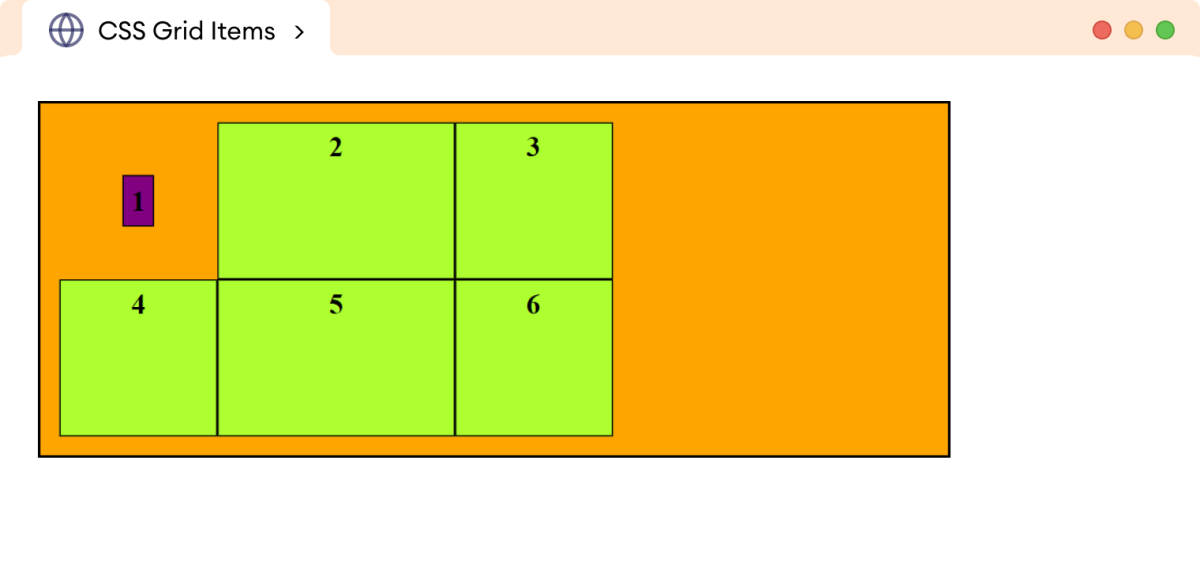

CSS Place-Self Example

In the above example,

place-self: center center;

aligns the grid content horizontally and vertically center within a grid cell.

Our premium learning platform, created with over a decade of experience and thousands of feedbacks.

Learn and improve your coding skills like never before.

Try Programiz PRO
  • Interactive Courses
  • Certificates
  • AI Help
  • 2000+ Challenges
