CSS 3D Transform

CSS 3D transform property allows to rotate, translate, and scale elements in a three-dimensional plane. For example,

Rotate2d
Rotate3d

Here, we can see the differences between rotation in a two-dimensional and three-dimensional plane.


CSS 3D Transforms Methods

CSS 3D transform property allows us to use the following transformation methods:

  • translate3d()
  • rotate3d()
  • scale3d()

To visualize the effect of 3D transform methods, we need to use a perspective property. This property allows us to define the virtual distance between the viewer and 3D transformed elements.

The syntax of the perspective property is:

perspective: length_value;

The perspective property takes a length value, which indicates the distance from the viewer to the 3D plane containing the transformed element.

We will look at each of the methods briefly.


translate3d() Method

The translate3d() method moves an element in a three dimensional space along the x, y, and z-axes.

The syntax of translate3d() method is:

transform: translate3d(x-value,y-value,z-value)

Here, the x-value, y-value, and z-value represent the distance that the element moves along x, y and z axes from the original position.

Let's see an example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D Translate</title>
    </head>

    <body>
        <div class="original">
            <div class="translate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    border: 4px solid black;
    perspective: 800px;
}

/* styles div with translate class */
div.translate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  translate3d(50px, 20px, 30px);
}

Browser Output

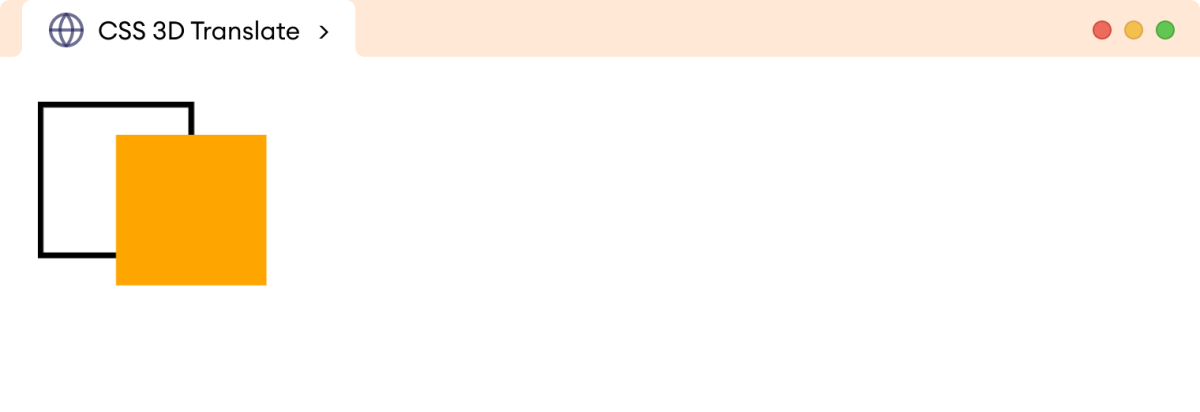

CSS 3D Transform Translate Example

In the above example,

transform: translate3d(50px, 20px, 30px)

moves the inner div element by 50 pixels horizontally, 20 pixels vertically and 30 pixels outward from the initial position.

Note: The negative value moves the element in the opposite direction.

The translateX() , translateY(), and translateZ() Methods

The translateX() Method

The translateX() method moves the element along the x-axis in three-dimensional space. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D TranslateX</title>
    </head>

    <body>
        <div class="original">
            <div class="translate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    border: 4px solid black;
    perspective: 800px;
}

/* styles div with translate class */
div.translate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  translateX(60px);
}

Browser Output

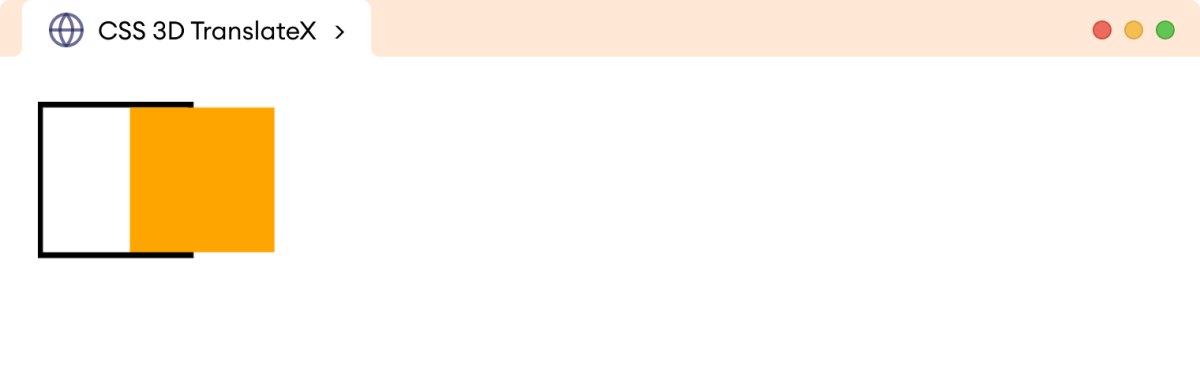

CSS 3D Transform TranslateX Example

In the above example,

transform: translateX(60px)

moves the inner div element by 60 pixels to the right horizontally in three-dimensional space from its original position.

The translateY() Method

The translateY() method moves the element along the y-axis in three-dimensional space. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D TranslateY</title>
    </head>

    <body>
        <div class="original">
            <div class="translate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    border: 4px solid black;
    perspective: 800px;
}

/* styles div with translate class */
div.translate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  translateY(30px);
}

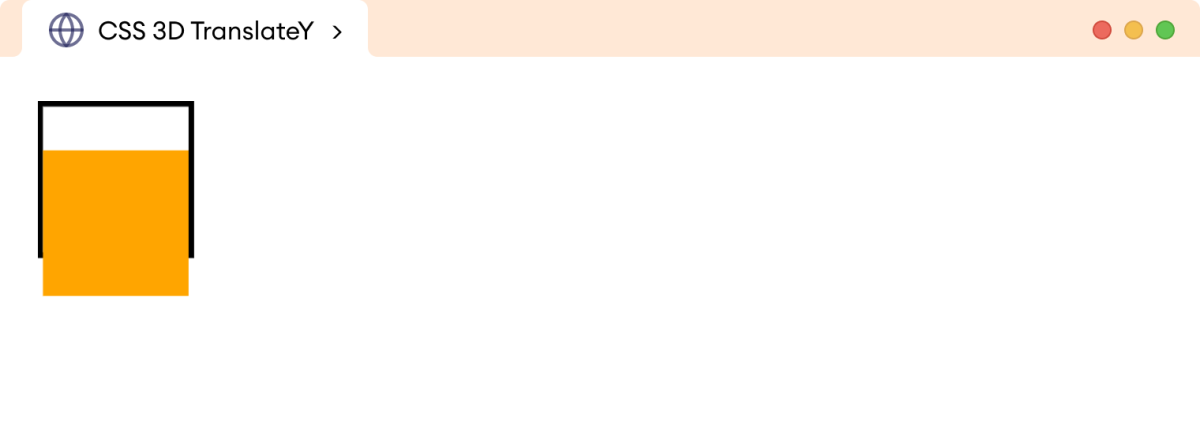

Browser Output

CSS 3D

In the above example,

transform: translateY(40px)

moves the inner div element by 40 pixels to the bottom vertically in three-dimensional space from its original position.

The translateZ() Method

The translateZ() method moves the element along the z-axis in three-dimensional space. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D TranslateZ</title>
    </head>

    <body>
        <div class="original">
            <div class="translate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    border: 4px solid black;
    perspective: 80px;
}

/* styles div with translate class */
div.translate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  translateZ(-20px);
}

Browser Output

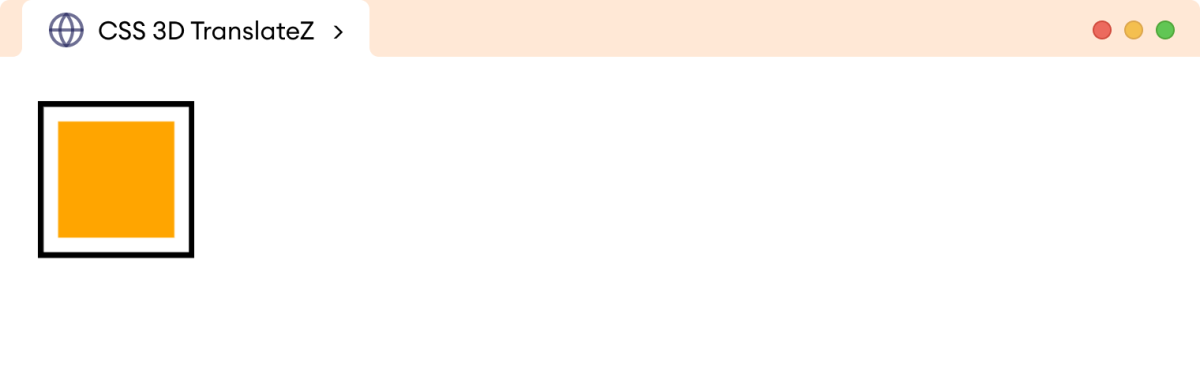

CSS 3D

In the above example,

transform: translateZ(-20px)

moves the inner div element by 20 pixels inward, away from the viewer in three dimensional space from its original position.


rotate3d() Method

The rotate3d() method rotates an element in the three-dimensional plane to the clockwise or anti-clockwise direction.

The syntax of rotate3d() method is:

transform: rotate3d(x, y, z, angle)

Here,

  • x, y, and z represent the axis of rotation ; 1 means rotation occurs in that axis, and 0 means no rotation along that axis
  • angle represents the degree of rotation

Let's see an example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D Rotate</title>
    </head>

    <body>
        <div class="original">
            <div class="rotate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    margin: 50px;
    border: 4px solid black;
    perspective: 80px;
}

/* styles div with rotate class */
div.rotate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform: rotate3d(1, 1, 1, 30deg);
}

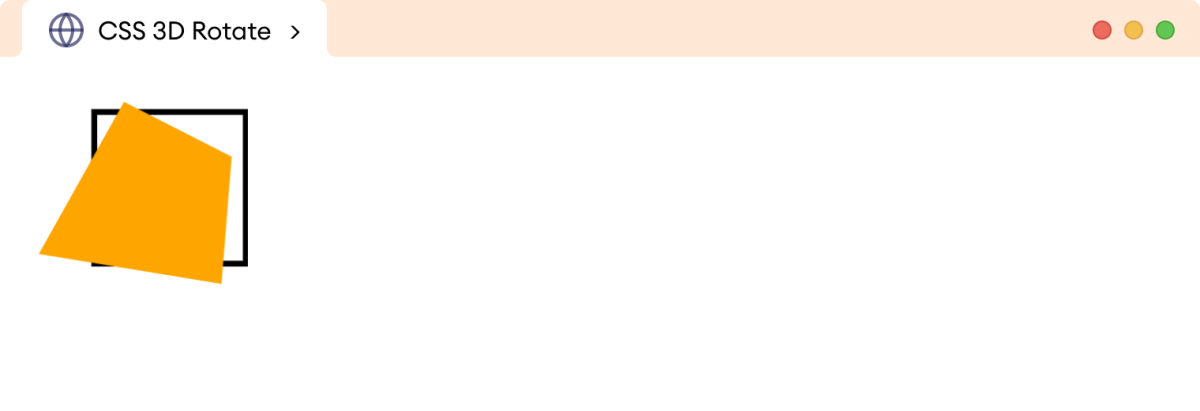

Browser Output

CSS 3D Transform Rotate Example

In the above example,

transform: rotate3d(1, 1, 1, 30deg)

rotates the inner div element by 30 degrees along all three axes in clockwise direction.

Note: The negative angle rotates the element in anti-clockwise direction.

The rotateX() , rotateY(), and rotateZ() Methods

The rotateX() Method

The rotateX() method rotates an element along the x-axis in three-dimensional space. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D RotateX</title>
    </head>

    <body>
        <div class="original">
            <div class="rotate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    border: 4px solid black;
    perspective: 80px;
}

/* styles div with rotate class */
div.rotate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  rotateX(30deg);
}

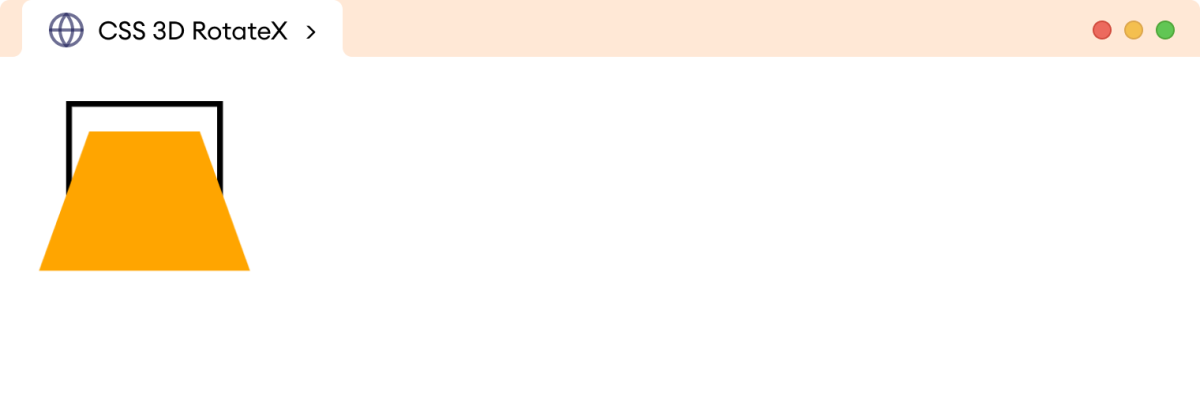

Browser Output

CSS 3D Transform RotateX Example

In the above example,

transform: rotateX(30deg)

rotates the inner div element by 30 degrees in clockwise direction along the x-axis in 3D space.

The rotateY() Method

The rotateY() method rotates an element along the y-axis in three-dimensional space. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D RotateY</title>
    </head>

    <body>
        <div class="original">
            <div class="rotate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    border: 4px solid black;
    perspective: 80px;
    margin: 50px;
}

/* styles div with rotate class */
div.rotate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  rotateY(30deg);
}

Browser Output

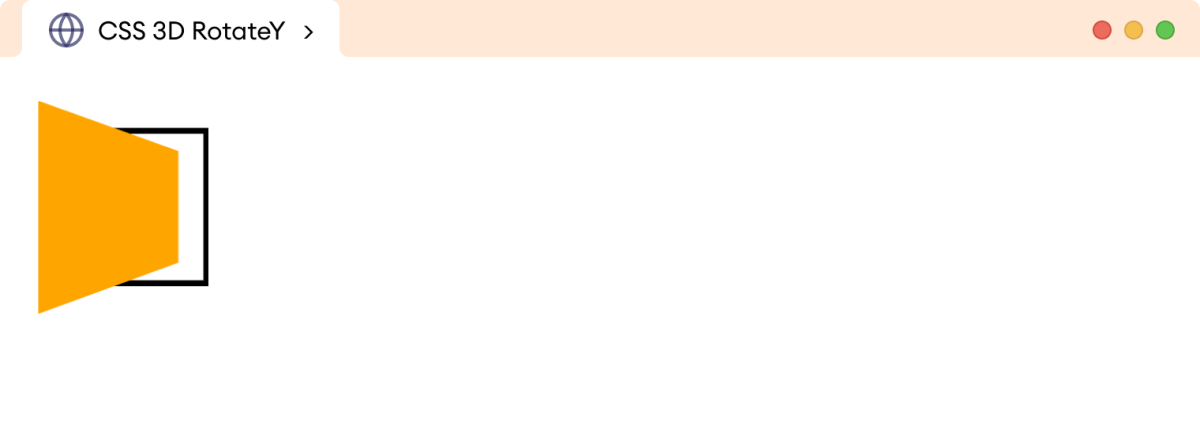

CSS 3D Transform RotateY Example

In the above example,

transform:rotateY(30deg)

rotates the inner div element by 30 degrees in a clockwise direction along the y-axis in 3D space.

The rotateZ() Method

The rotateZ() method rotates an element along the z-axis in three-dimensional space. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D RotateZ</title>
    </head>

    <body>
        <div class="original">
            <div class="rotate"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    margin: 50px;
    border: 4px solid black;
    perspective: 80px;
}

/* styles div with rotate class */
div.rotate {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  rotateZ(30deg);
}

Browser Output

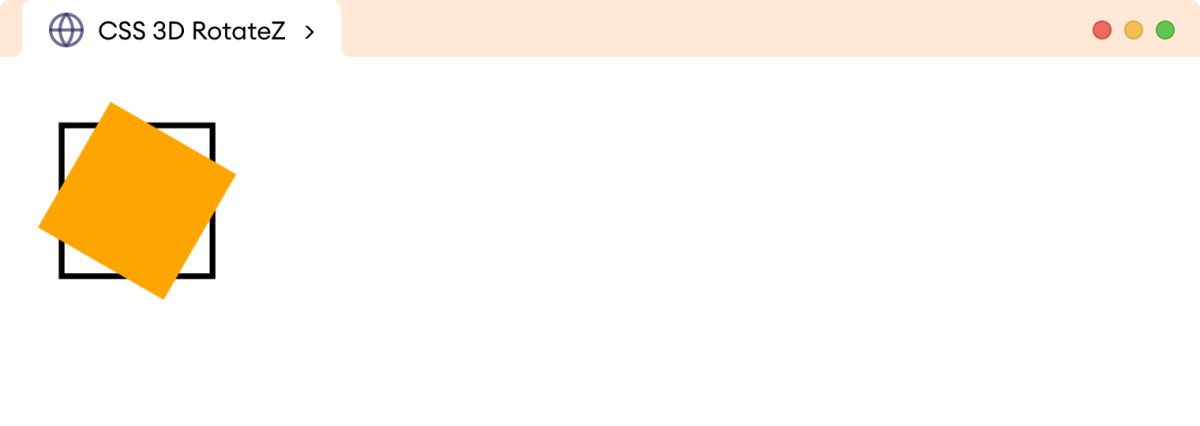

CSS 3D Transform RotateZ Example

In the above example,

transform: rotateZ(30deg)

rotates the inner div element by 30 degrees in a clockwise direction along the z-axis in 3D space.


scale3d() Method

The scale3d() method scales the element i.e increases or decreases the size of an element in three-dimensional space along all the axes. It changes the width, height, and depth of the element.

The syntax of scale3d() is:

transform: scale3d(x, y, z)

Here, x, y, and z are the scaling factors to scale the element along the x-axis, y-axis, and z-axis, respectively.

Let's see an example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 3D Scale</title>
</head>

<body>
    <div class="original">
        <div class="scale"></div>
    </div>
</body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    margin: 50px;
    border: 4px solid black;
    perspective: 800px;
}

/* styles div with scale class */
div.scale {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform: scale3d(1, 2, 5) rotateX(45deg);
}

Browser Output

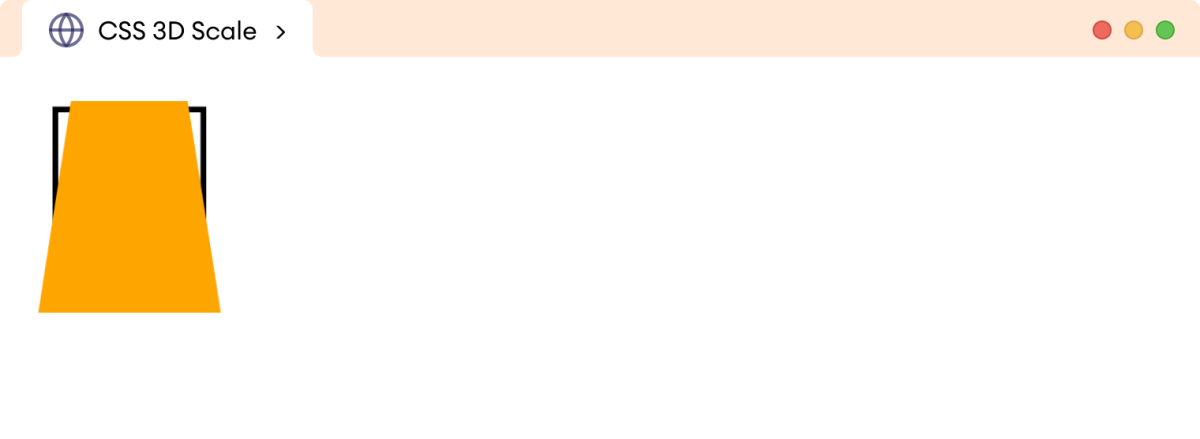

CSS 3D Transform Scale Example

In the above example,

transform: scale3d(1, 2, 5)

scales the inner div element by keeping its width the same, doubles the height and increases the depth by five times.

Note: The rotateX() function enhances the visual effect of 3D scaling.

The scaleX() , scaleY() ,and scaleZ() Method

The scaleX() Method

The scaleX() method scales the element horizontally keeping all other axes constant. For example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 3D ScaleX</title>
</head>

<body>
    <div class="original">
        <div class="scale"></div>
    </div>
</body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    margin: 50px;
    border: 4px solid black;
    perspective: 80px;
}

/* styles div with scale class */
div.scale {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:   scaleX(2);
}

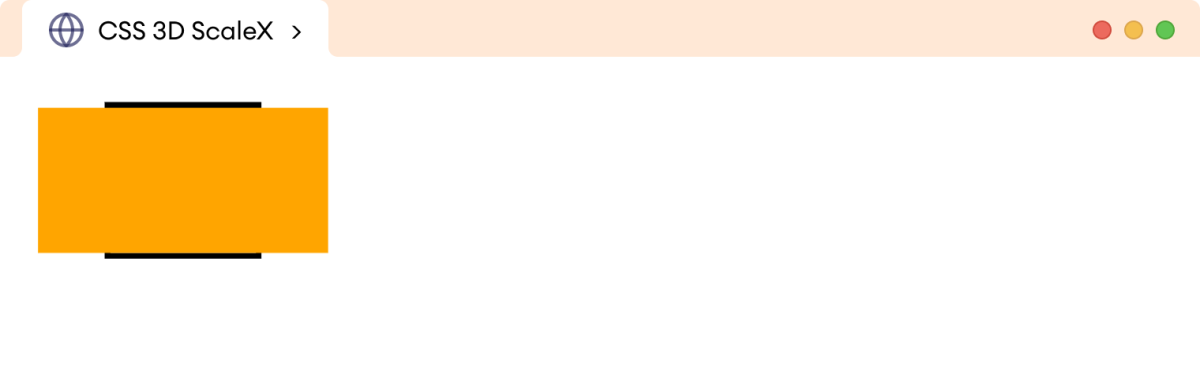

Browser Output

CSS 3D Transform ScaleX Example

In the above example,

transform: scaleX(2)

scales the inner div element to twice its width along x-axis keeping the height and depth unchanged.

The scaleY() Method

The scaleY() method scales the element vertically keeping all other axes constant. For example,

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>CSS 3D ScaleY</title>
</head>

<body>
    <div class="original">
        <div class="scale"></div>
    </div>
</body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    margin: 50px;
    border: 4px solid black;
    perspective: 80px;
}

/* styles div with scale class */
div.scale {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform: scaleY(1.5);
}

Browser Output

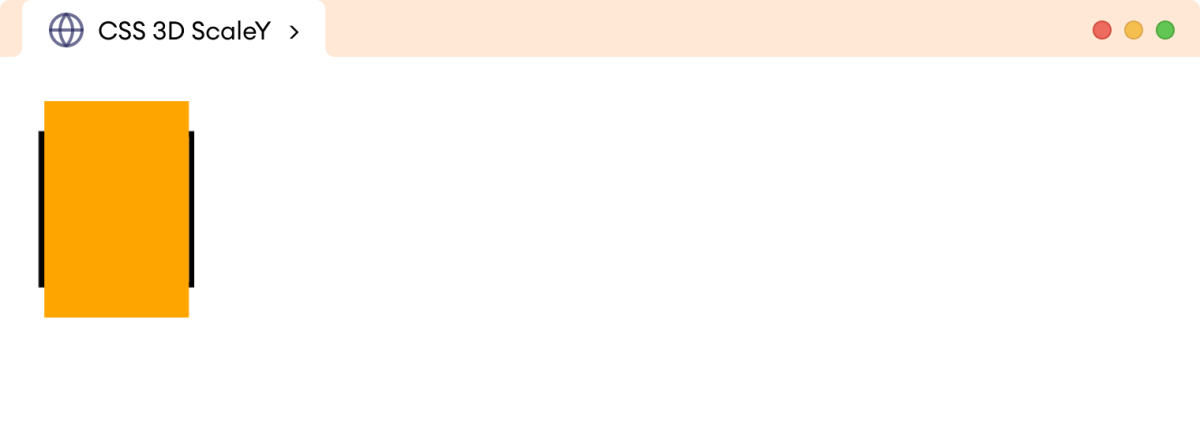

CSS 3D Transform ScaleY Example

In the above example,

transform: scaleY(1.5)

scales the inner div element to 1.5 times of its height along the y-axis keeping the width and depth unchanged.

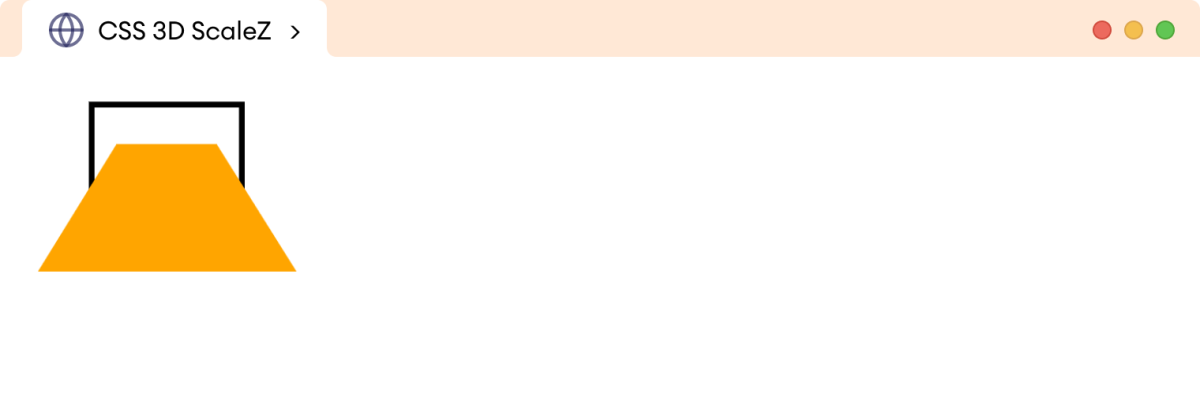

The scaleZ() Method

The scaleZ() method scales the element along the z-axis keeping all other axes constant. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS 3D ScaleZ</title>
    </head>

    <body>
        <div class="original">
            <div class="scale"></div>
        </div>
    </body>

</html>
/* styles original div */
div.original {
    width: 100px;
    height: 100px;
    margin: 50px;
    border: 4px solid black;
    perspective: 800px;
}

/* styles div with scale class */
div.scale {
    width: 100px;
    height: 100px;
    background-color: orange;
    transform:  scaleZ(10) rotateX(45deg);
}

Browser Output

CSS 3D Transform ScaleZ Example

In the above example,

transform: scaleZ(10)

scales the inner div element to 10 times its depth along the z-axis keeping the width and height unchanged.

Note: The scaleZ() function scales along the z-axis only. Hence, we need to combine it with other transformation methods to visualize the complete effect of transformation.

Our premium learning platform, created with over a decade of experience and thousands of feedbacks.

Learn and improve your coding skills like never before.

Try Programiz PRO
  • Interactive Courses
  • Certificates
  • AI Help
  • 2000+ Challenges
