CSS Background Origin

CSS background-origin property sets the starting position of the background image. For example,

div {
    background-image: url("girl-illustration.png");
    background-origin: content-box;
}

Browser Output

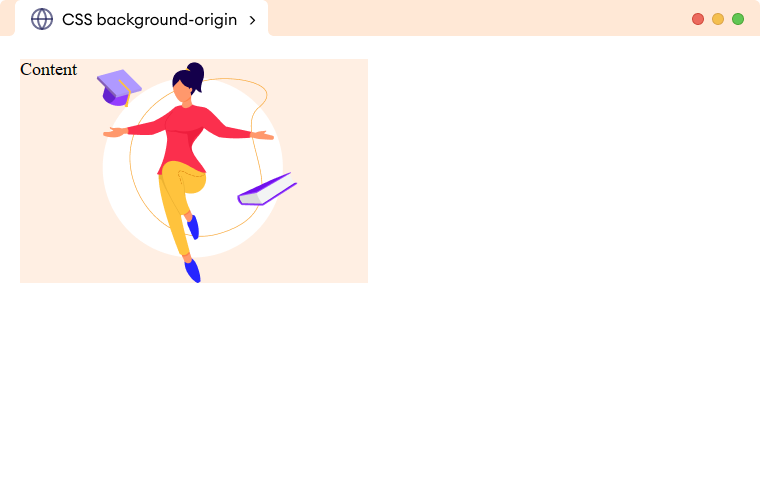

CSS Background Origin Example

Here, the background-origin property sets the origin of the background image to the content-box of the div element. The context-box is an area within which the actual content of the element is displayed.


CSS Background-Origin Syntax

The syntax of the background-origin property is,

background-origin: padding-box | border-box | content-box | initial | inherit;

Here,

  • padding-box: background image starts from the top left corner of the padding edge (default value)
  • border-box: background image starts from the top left corner of the border edge
  • content-box: background image starts from the top left corner of the content edge
  • initial: sets the property value to the default value
  • inherit: inherits the property from its parent element

Example: CSS background-origin

Let's see an example of the background-origin property,

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS background-origin</title>
    </head>

    <body>
        <h2>background-origin: border-box:</h2>
        <div class="example example1">
            <h3>Heading</h3>
            <p>
                The background image starts from the upper left corner of the
                border.
            </p>
        </div>

        <h2>background-origin: padding-box (default):</h2>
        <div class="example example2">
            <h3>Heading</h3>
            <p>
                The background image starts from the upper left corner of the
                padding edge.
            </p>
        </div>

        <h2>background-origin: content-box:</h2>
        <div class="example example3">
            <h3>Heading</h3>
            <p>
                The background image starts from the upper left corner of the
                content.
            </p>
        </div>
    </body>
</html>
/* styles the all div */
div.example {
    border: 14px dashed orange;
    padding: 16px;
    background-image: url("bg-image.png");
    background-repeat: no-repeat;
}

div.example1 {
    background-origin: border-box;
}

div.example2 {
    /* default value */
    background-origin: padding-box;
}

div.example3 {
    background-origin: content-box;
}

Browser Output

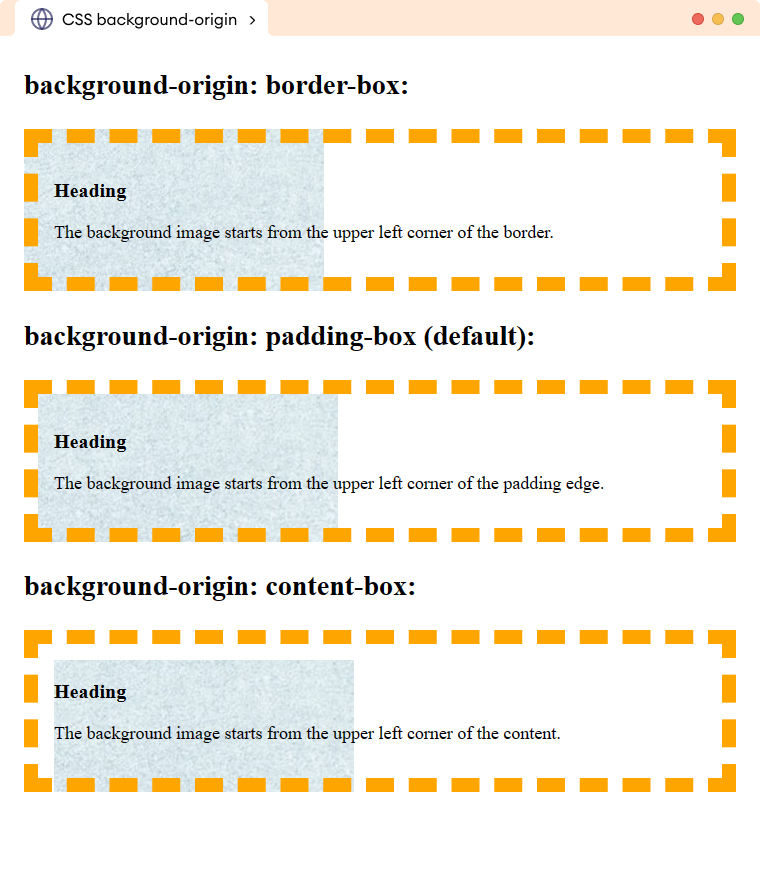

CSS Background Origin Example

The above example illustrates the different values of the background-origin property.

The background image in the above example also extends to the edge of the border by default. We can change that using the background-clip property.


Background-origin with background-Attachment

The background-origin property has no effect on the fixed value of the background-attachment property. For example,

<!DOCTYPE html>
<html lang="en">

    <head>
        <meta charset="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <link rel="stylesheet" href="style.css" />
        <title>CSS background-origin</title>
    </head>

    <body>
        <div>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
            <p>This is a paragraph.</p>
        </div>
    </body>

</html>
div {
    background-image: url("https://www.programiz.com/blog/content/images/2020/11/intro-c-banner-1-1.png");
    background-repeat: no-repeat;
    background-size: 500px;
    border: 2px solid black;
    padding: 16px;

    /* sets the background-attachment to fixed */
    background-attachment: fixed;

    /* sets background image to start from content-box, doesn't work */
    background-origin: content-box;
}

Browser Output

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.

This is a paragraph.


In the above example, the background image doesn't start from the content, even though the background-origin property is set to the content-box.
